VBsemi ElecDatasheet (PDF)

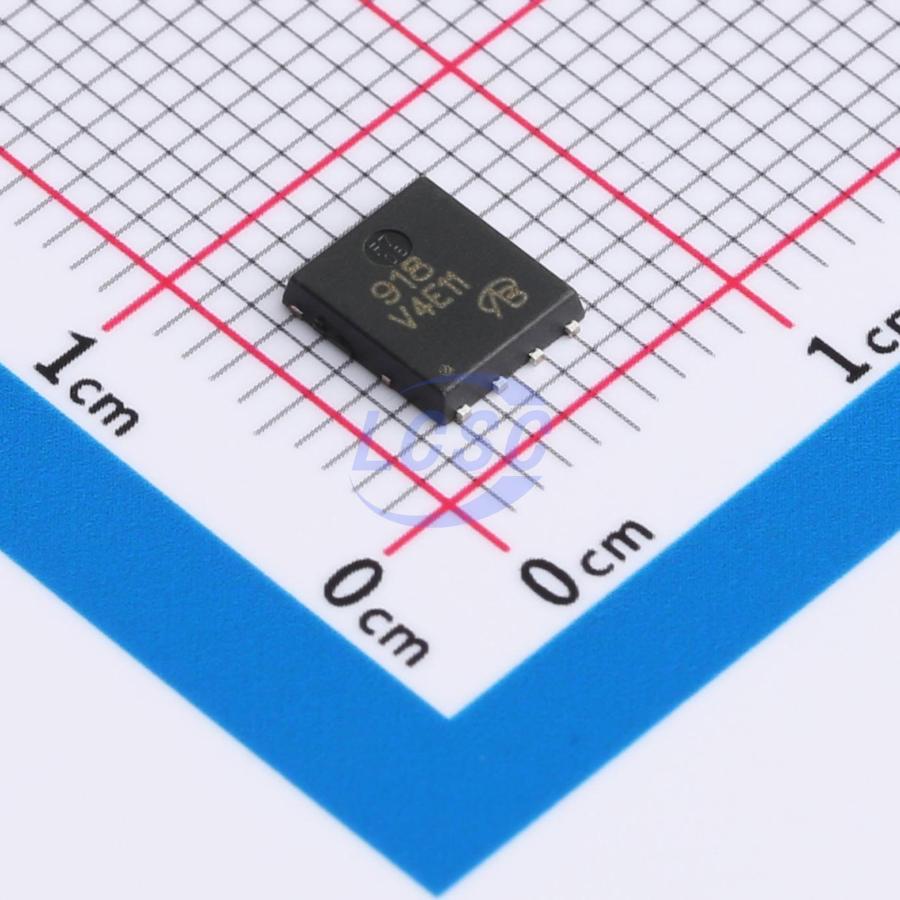

SIZ918DT-T1-GE3-VB
N-Channel 30V 60A 56W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 30V 60A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIZ918DT-T1-GE3-VB
- Store part #
- C22395884
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22395884
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.52 | ₹123.52 |
| 10+ | ₹99.36 | ₹993.60 |
| 30+ | ₹87.38 | ₹2,621.40 |
| 100+ | ₹75.41 | ₹7,541.00 |
| 500+ | ₹68.28 | ₹34,140.00 |
| 1,000+ | ₹64.71 | ₹64,710.00 |
1 × ₹123.52
₹123.52
excl. GST
₹145.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIZ918DT-T1-GE3-VB
₹123.52 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 257pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 56W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 4.3mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Applications
- Set Top Box
- Low Current DC/DC
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % UIS Tested
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSG0811NDATMA1-VB#C22395961VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 50 | ₹147.61 · 50 in stock | View |
 | BSC0921NDI-VB#C42428232VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹173.72 · 10 in stock | View |
 | BSC0923NDI-VB#C42428233VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹173.72 · 10 in stock | View |
 | BSC0910NDI-VB#C42428234VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹173.72 · 10 in stock | View |
 | SM7320ESQG-VB#C20417614VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 9 | ₹130.06 · 9 in stock | View |
