InfineonDatasheet (PDF)

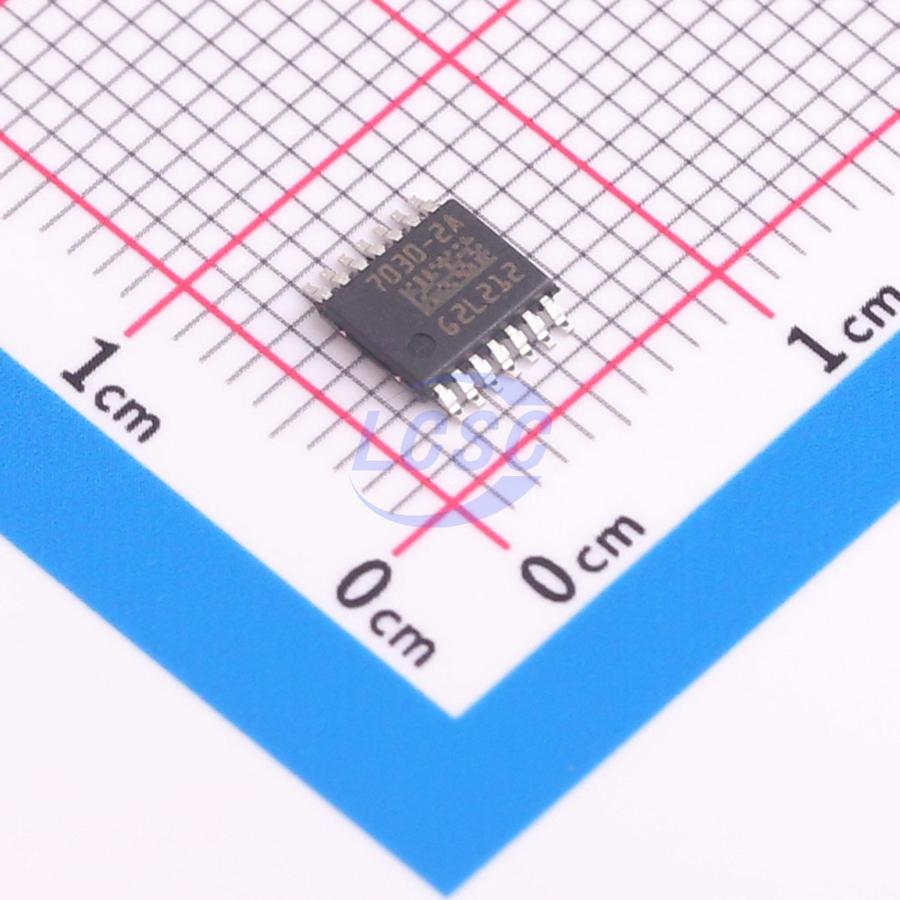

BTS7030-2EPA
2 4.5A Active High High Side Switch TSDSO-14 Power Distribution Switches, Load Drivers
TSDSO-14RoHSActive
12V Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS7030-2EPA
- Store part #
- C534836
- Package / case
- TSDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,487 in stock
#C534836
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹184.92 | ₹184.92 |
| 10+ | ₹146.06 | ₹1,460.60 |
| 30+ | ₹124.80 | ₹3,744.00 |
| 100+ | ₹100.71 | ₹10,071.00 |
| 500+ | ₹90.07 | ₹45,035.00 |
| 1,000+ | ₹85.08 | ₹85,080.00 |
1 × ₹184.92
₹184.92
excl. GST
₹218.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTS7030-2EPA
₹184.92 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Latch protection
- number of channels
- 2
- Maximum Continuous Current
- 4.5A
- Control Input Logic
- Active High
- Operating Voltage
- 3.1V~28V
- RDS(on)
- 25mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.236 g
Overview
The BTS7030-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Driving capability suitable for 4.5 A loads and high inrush current loads such as 2 x P21W lamps or equivalent electronic loads (e.g. LED modules)
Key features
- High-Side Switch with Diagnosis and Embedded Protection
- Part of PROFET™ '+2 12V Family
- ReverseON for low power dissipation in Reverse Polarity
- Switch ON capability while Inverse Current condition (InverseON)
- Green Product (RoHS compliant)
- Absolute and dynamic temperature limitation with controlled restart
- Overcurrent protection (tripping) with Intelligent Restart Control
- Undervoltage shutdown
- Overvoltage protection with external components
- Proportional load current sense
- Open Load in ON and OFF state
- Short circuit to ground and battery
- Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.
