InfineonDatasheet (PDF)

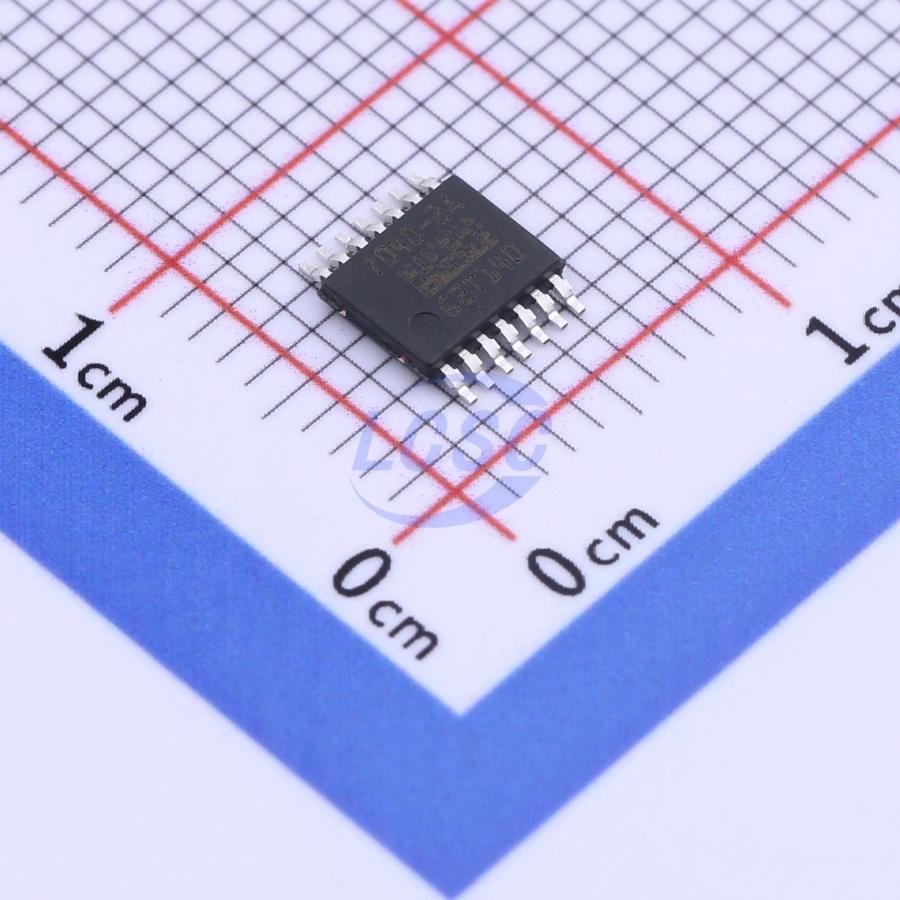

BTS7040-2EPA
2 3.5A Active High High Side Switch TSDSO-14 Power Distribution Switches, Load Drivers
TSDSO-14RoHSActive
12V Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS7040-2EPA
- Store part #
- C534839
- Package / case
- TSDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,768 in stock
#C534839
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.84 | ₹143.84 |
| 10+ | ₹120.12 | ₹1,201.20 |
| 30+ | ₹106.85 | ₹3,205.50 |
| 100+ | ₹92.04 | ₹9,204.00 |
| 500+ | ₹85.52 | ₹42,760.00 |
| 1,000+ | ₹82.69 | ₹82,690.00 |
1 × ₹143.84
₹143.84
excl. GST
₹169.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTS7040-2EPA
₹143.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Integrated charge pump;Latch protection
- number of channels
- 2
- Maximum Continuous Current
- 3.5A
- Control Input Logic
- Active High
- RDS(on)
- 19mΩ
- Operating Voltage
- 4.1V~28V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The BTS7040-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Driving capability suitable for 3.5 A loads and high inrush current loads such as P27W+R5W lamps or equivalent electronic loads (e.g. LED modules)
Key features
- High-Side Switch with Diagnosis and Embedded Protection Part of PROFET+2 12V Family ReverseON for low power dissipation in Reverse Polarity Switch ON capability while Inverse Current condition (InverseON)
- Green Product (RoHS compliant)
- Absolute and dynamic temperature limitation with controlled restart
- Overcurrent protection (tripping) with Intelligent Restart Control Undervoltage shutdown Overvoltage protection with external components
- Proportional load current sense Open Load in ON and OFF state Short circuit to ground and battery
- Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS7008-2EPA#C534830Infineon · TSDSO-14 | Infineon | TSDSO-14 | 3,351 | ₹157.25 · 3,351 in stock | View |
 | BTS7012-2EPA#C534834Infineon · TSDSO-14 | Infineon | TSDSO-14 | 8 | ₹158.50 · 8 in stock | View |
 | BTS7080-2EPZ#C534841Infineon · TSDSO-14 | Infineon | TSDSO-14 | 5 | ₹552.27 · 5 in stock | View |
| BTS70082EPGXUMA1#C20189659Infineon · TSDSO-14 | Infineon | TSDSO-14 | On request | ₹462.77 · 0 in stock | View | |
