NexperiaDatasheet (PDF)

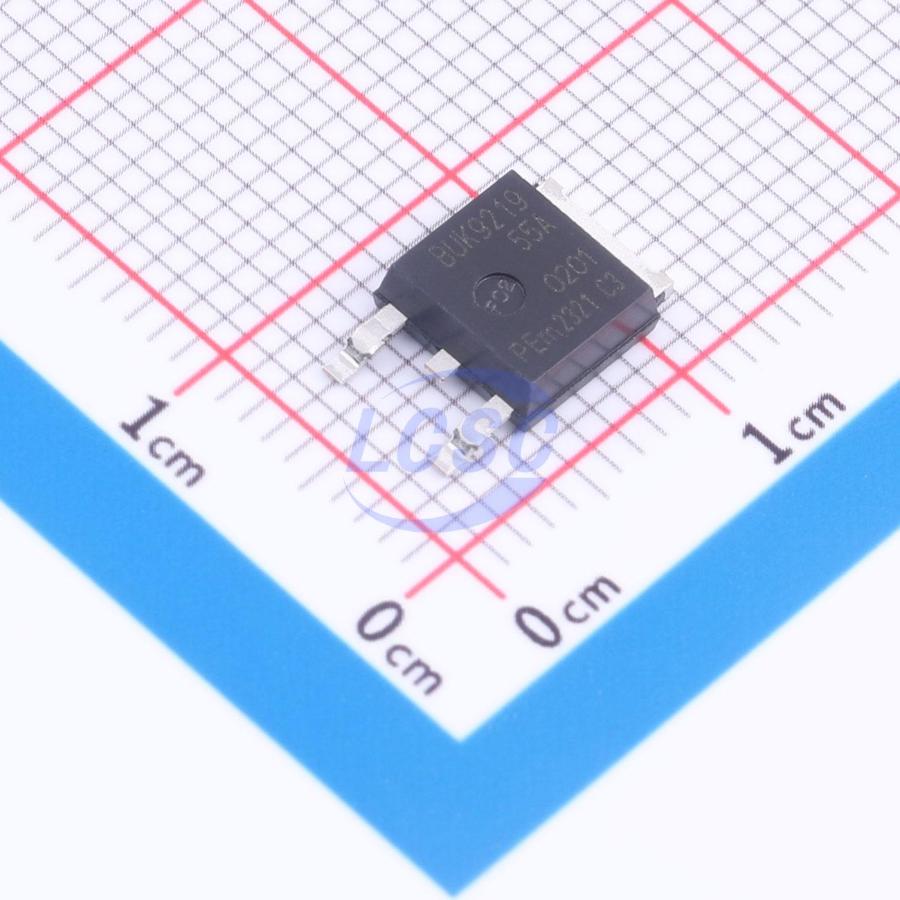

BUK9219-55A,118
114W 55V 55A 17.6mΩ@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BUK9219-55A,118
- Store part #
- C549939
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C549939
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹401.60 | ₹401.60 |
| 10+ | ₹342.51 | ₹3,425.10 |
| 30+ | ₹307.11 | ₹9,213.30 |
| 100+ | ₹271.49 | ₹27,149.00 |
| 500+ | ₹255.21 | ₹1,27,605.00 |
| 1,000+ | ₹247.82 | ₹2,47,820.00 |
1 × ₹401.60
₹401.60
excl. GST
₹473.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BUK9219-55A,118
₹401.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 380pF
- Ciss-Input Capacitance
- 2.92nF
- Pd - Power Dissipation
- 114W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 55A
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 17.6mΩ@10V
- Number
- 1 N-channel
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.428 g
Overview
Plastic-encapsulated logic-level N-channel enhancement-mode FET using TrenchMOS technology. This product has been designed and qualified in accordance with the applicable AEC standards, suitable for automotive critical applications.
Applications
- 12 V and 24 V loads
- Automotive and general-purpose power switching
- Motors, lamps, and solenoids
Key features
- Low on-resistance, minimal conduction loss
- Q101 compliant
- Compatible with logic-level gate drive sources
- 175°C temperature rating, suitable for high thermal demand environments
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MDT08N06#C5240687Minos · TO-252 | Minos | TO-252 | 690 | ₹25.40 · 690 in stock | View |
 | 80N06#C42186020GOODWORK · TO-252 | GOODWORK | TO-252 | 855 | ₹34.66 · 855 in stock | View |
 | STD60NF55LT4-VB#C19188094VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 29 | ₹86.92 · 29 in stock | View |
 | STD60NF55LAT4#C2971177ST · TO-252(DPAK) | ST | TO-252(DPAK) | 50 | ₹302.64 · 50 in stock | View |
 | STD60NF55LT4#C49254074ST · DPAK | ST | DPAK | 30 | ₹134.07 · 30 in stock | View |
