XBLWDatasheet (PDF)

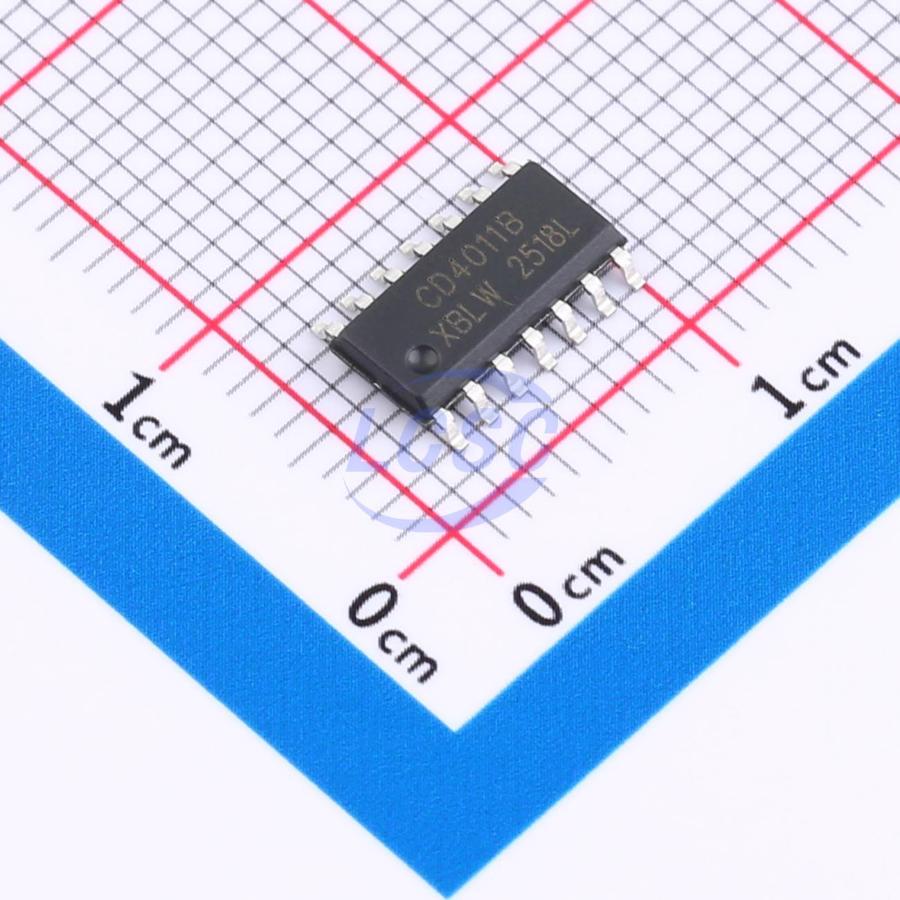

CD4011BDTR(XBLW)
NAND Gate IC 4 Channel SOP-14
SOP-14ROHS CompliantActive
Quad 2-input Nand Gate
- Manufacturer
- XBLW
- Manufacturer part #
- CD4011BDTR(XBLW)
- Store part #
- C48971051
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,760 in stock
#C48971051
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.19 | ₹91.90 |
| 100+ | ₹7.32 | ₹732.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 2,500+ | ₹5.68 | ₹14,200.00 |
| 5,000+ | ₹5.11 | ₹25,550.00 |
| 10,000+ | ₹4.83 | ₹48,300.00 |
10 × ₹9.19
₹91.90
excl. GST
₹108.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4011BDTR(XBLW)
₹91.90 for 10 + GST
Specifications
- Logic Family
- CD4 Series
- Input Logic Level - Low
- 4V
- Input Logic Level - High
- 11V
- Operating Temperature
- -40℃~+105℃
- Output Logic Level - High
- 15V
- Quiescent Current(Iq)
- 10nA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Propagation Delay
- 90ns@15V,50pF
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.269 g
Overview
CD4011 is a quad 2-input NAND gate with fully buffered outputs for maximum noise immunity and mode-insensitive output impedance. The device operates over a recommended VDD supply voltage range of 3V to 15V (relative to VSS, typically ground). Unused inputs must be connected to VDD, VSS, or another input. Available in DIP-14, SOP-14, and TSSOP-14 packages.
Key features
- Wide supply voltage range: 3V~15V
- Fully static operation
- Available in 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40℃ ~ +105℃
- Package options: DIP14, SOP14, TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4093BDTR(XBLW)#C41361405XBLW · SOP-14 | XBLW | SOP-14 | 5,075 | ₹21.43 · 5,075 in stock | View |
 | MC14093BDR2G(XBLW)#C22387039XBLW · SOP-14 | XBLW | SOP-14 | 275 | ₹33.62 · 275 in stock | View |
 | MC14011BDR2G(XBLW)#C22387036XBLW · SOP-14 | XBLW | SOP-14 | 915 | ₹39.44 · 915 in stock | View |
