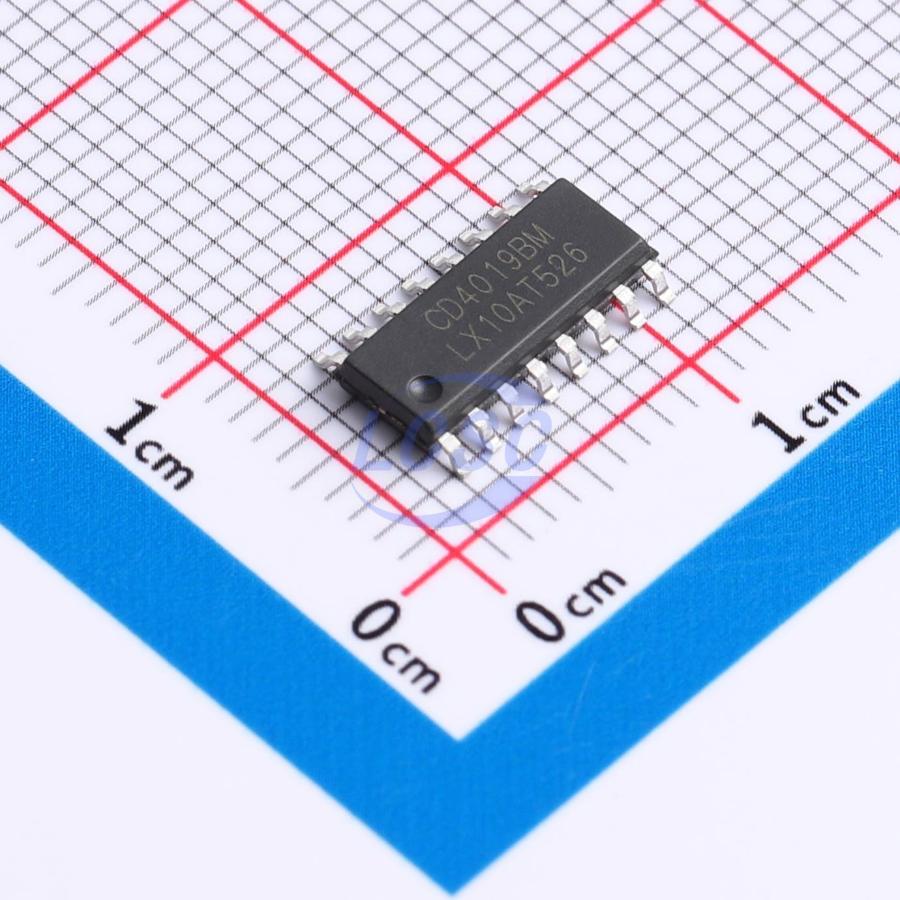

CD4019BM(LX)
30uA 3V~15V 120ns@15V,50pF SOP-16 Gates and Inverters
SOP-16RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4019BM(LX)
- Store part #
- C52097909
- Package / case
- SOP-16
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,975 in stock
#C52097909
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.62 | ₹178.10 |
| 50+ | ₹31.28 | ₹1,564.00 |
| 150+ | ₹29.41 | ₹4,411.50 |
| 500+ | ₹27.10 | ₹13,550.00 |
| 2,500+ | ₹26.06 | ₹65,150.00 |
| 4,000+ | ₹25.44 | ₹1,01,760.00 |
5 × ₹35.62
₹178.10
excl. GST
₹210.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4019BM(LX)
₹178.10 for 5 + GST
Specifications
- Logic Family
- CD4
- Input Logic Level - High
- 3.5V;7V;11V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 30uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 2.8mA
- Number of Channels
- 4;2
- Propagation Delay
- 120ns@15V,50pF
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 2.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.271 g
Overview
CD4019 is a quad AND/OR select gate. It operates over a supply voltage range of 3V to 15V, with VSS as the reference voltage. Unused inputs must be connected to VDD, VSS, or other inputs.
Key features
- Supply voltage range: 3V to 15V
- Operating temperature range: -40℃ to +125℃
- Package: DIP16/SOP16/TSSOP16
