HGSEMIDatasheet (PDF)

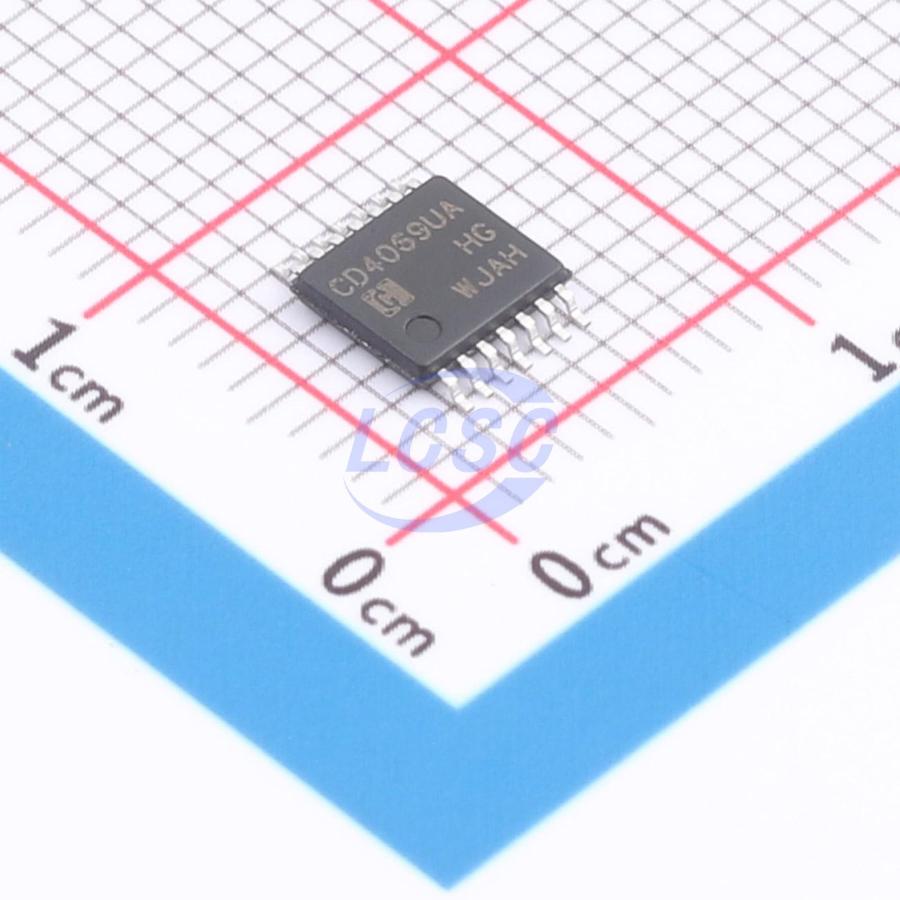

CD4069UAMT/TR
StandardCMOS 1uA 3V~15V 6 32ns@15V,50pF TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4069UAMT/TR
- Store part #
- C51953510
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,455 in stock
#C51953510
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.88 | ₹84.40 |
| 50+ | ₹13.44 | ₹672.00 |
| 150+ | ₹11.72 | ₹1,758.00 |
| 500+ | ₹10.44 | ₹5,220.00 |
| 2,500+ | ₹9.41 | ₹23,525.00 |
| 5,000+ | ₹8.89 | ₹44,450.00 |
5 × ₹16.88
₹84.40
excl. GST
₹99.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4069UAMT/TR
₹84.40 for 5 + GST
Specifications
- Input Logic Level - Low
- 1V;2V;2.5V
- Input Type
- StandardCMOS
- Logic Family
- CD4
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - High
- 4V;8V;12.5V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Number of Channels
- 6
- Propagation Delay
- 32ns@15V,50pF
- Output Logic Level - Low
- 0V~50mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
Overview
This device consists of six CMOS inverter circuits, primarily used as general-purpose inverters for circuits that do not require power TTL driving or logic level conversion functions.
Applications
- Logic inverter
- Oscillator
- High input impedance amplifier
Key features
- Standardized symmetrical output characteristics
- Supply voltage: 3~15 V
- Input voltage: 0~VDD
- Fast output response
- Low quiescent current: IDD < 1 μA
