HGSEMIDatasheet (PDF)

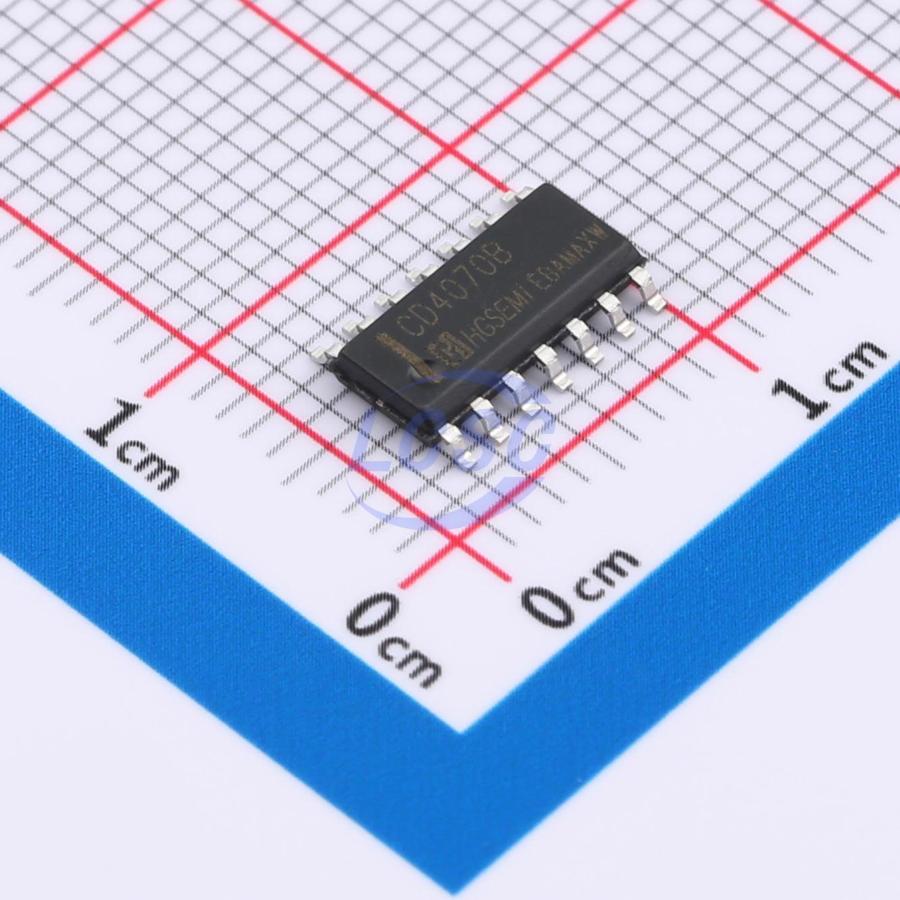

CD4070BM/TR
IC Gate 4 Channel SOP-14
SOP-14RoHSActive
IC GATE 4CH SOP-14
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4070BM/TR
- Store part #
- C2902522
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C2902522
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.95 | ₹99.75 |
| 50+ | ₹16.00 | ₹800.00 |
| 150+ | ₹14.01 | ₹2,101.50 |
| 500+ | ₹12.53 | ₹6,265.00 |
| 2,500+ | ₹11.34 | ₹28,350.00 |
| 5,000+ | ₹10.74 | ₹53,700.00 |
5 × ₹19.95
₹99.75
excl. GST
₹117.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4070BM/TR
₹99.75 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 4000 Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 60uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 4.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 100ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
CD4070B contains four independent XOR gate circuits with exclusive-OR functionality. CD4070B is available in 14-pin plastic DIP and plastic dual in-line (SOP, TSSOP) package options.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4070CM/TR#C20613258HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,525 | ₹16.78 · 2,525 in stock | View |
