CD4077BM96
3V~18V 100ns@15V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive

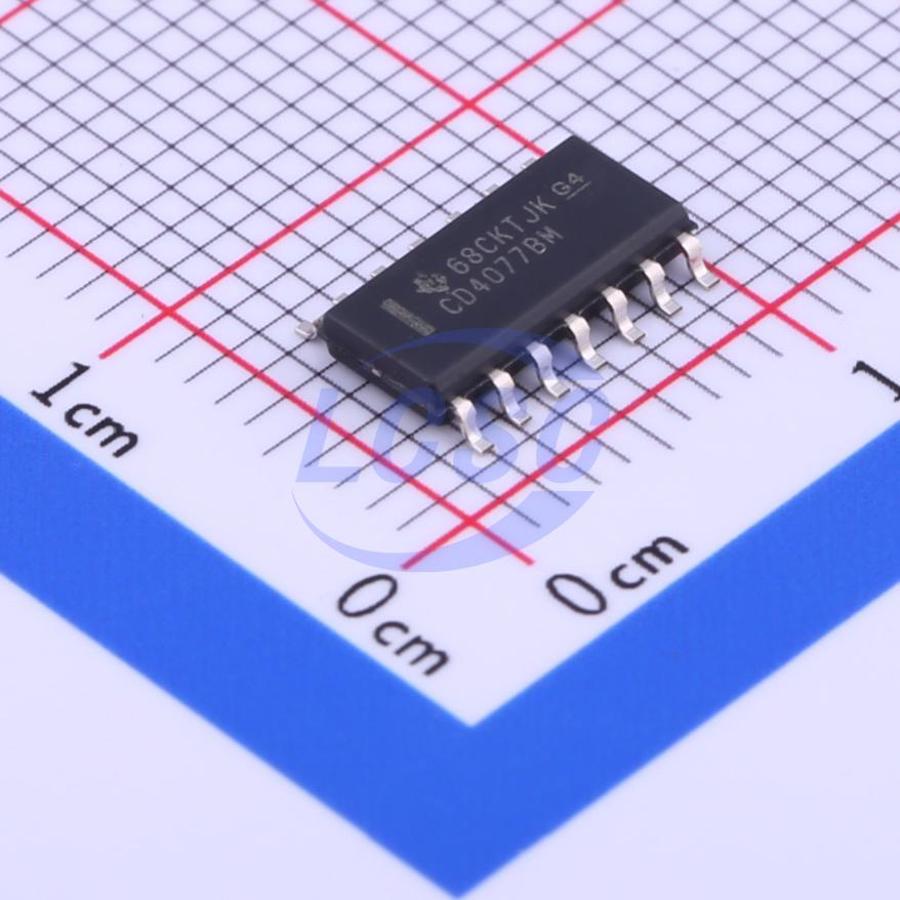

CMOS Quad Exclusive-OR and Exclusive-NOR Gate
- Manufacturer
- TI
- Manufacturer part #
- CD4077BM96
- Store part #
- C86563
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
888 in stock
#C86563
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.70 | ₹98.70 |
| 10+ | ₹80.77 | ₹807.70 |
| 30+ | ₹71.71 | ₹2,151.30 |
| 100+ | ₹62.84 | ₹6,284.00 |
| 500+ | ₹57.67 | ₹28,835.00 |
| 1,000+ | ₹54.86 | ₹54,860.00 |
1 × ₹98.70
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4077BM96
₹98.70 for 1 + GST
Specifications
- Logic Family
- 4000B Series
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 100ns@15V,50pF
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
CD4070B contains four independent ExclusiveOR gates. CD4077B contains four independent Exclusive- NOR gates. CD4070B and CD4077B provide the system designer with a means for direct implementation of the Exclusive- OR and Exclusive- NOR functions, respectively.
Applications
- Logical Comparators
- Adders/Subtractors
- Parity Generators and Checkers
Key features
- High-Voltage Types (20V Rating) - CD4070B
- Quad Exclusive-OR Gate - CD4070B
- Quad Exclusive-NOR Gate - Medium Speed Operation
- tPHL, tPLH = 65ns (Typ) at VDD = 10V, CL = 50pF
- 100% Tested for Quiescent Current at 20V
- Standardized Symmetrical Output Characteristics
- 5V, 10V and 15V Parametric Ratings
- Maximum Input Current of 1μA at 18V Over Full Package Temperature Range
- 100nA at 18V and 25℃
- Noise Margin (Over Full Package Temperature Range)
- 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
- Meets All Requirements of JEDEC Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
