XBLW

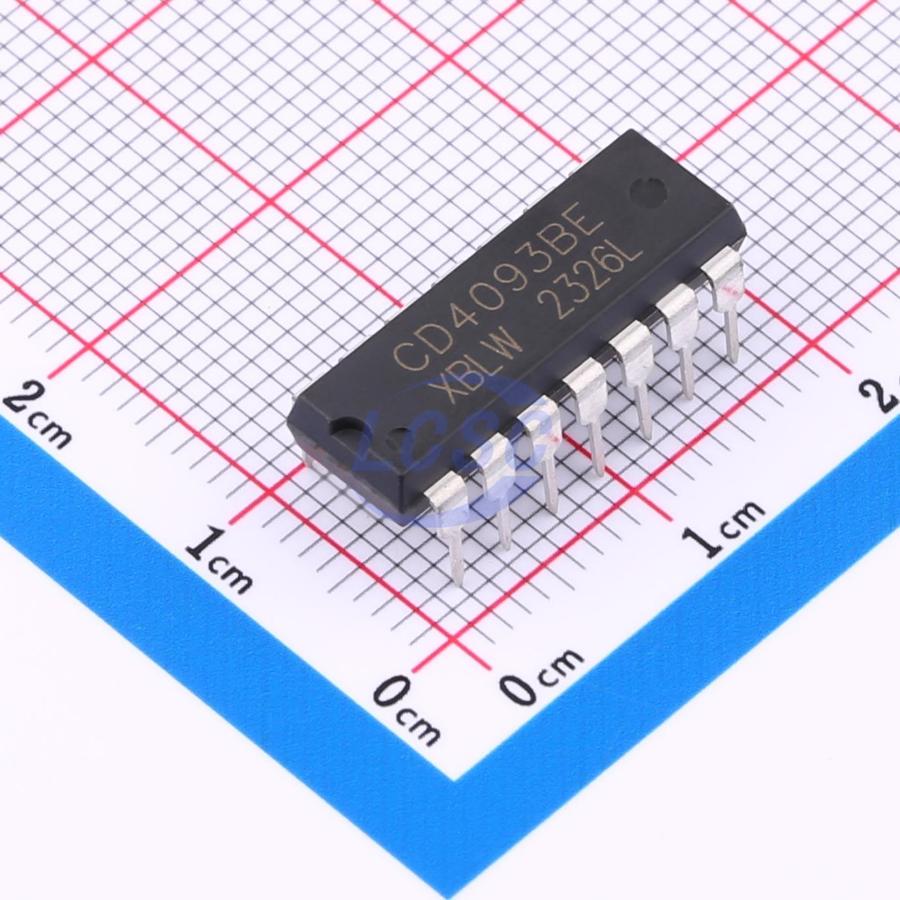

CD4093BE(XBLW)

Schmitt trigger 3V~15V 90ns 4uA DIP-14 Gates and Inverters RoHS

DIP-14ROHS CompliantActive

Quad 2-input Nand Schmitt Gate

Manufacturer: XBLW
Manufacturer part #: CD4093BE(XBLW)
Store part #: C18723490
Package / case: DIP-14
Category: Gates and Inverters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,940 in stock

#C18723490

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹24.66	₹123.30
50+	₹19.40	₹970.00
150+	₹17.15	₹2,572.50
500+	₹14.33	₹7,165.00
2,000+	₹13.07	₹26,140.00
5,000+	₹12.32	₹61,600.00

Quantity (min 5, multiples of 5)

5 × ₹24.66

₹123.30

excl. GST

₹145.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

CD4093BE(XBLW)

₹123.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: CD4
Voltage - Supply: 3V~15V
Propagation Delay: 90ns
Output Logic Level - Low: 50mV
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 10V
Quiescent Current(Iq): 4uA
Number of Channels: 4;2
Current - Output High(IOH): 6.8mA
Current - Output Low(IOL): 2.6mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.65 g

Overview

The CD4093 is a quad two- input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive- going and negative- going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH) It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
