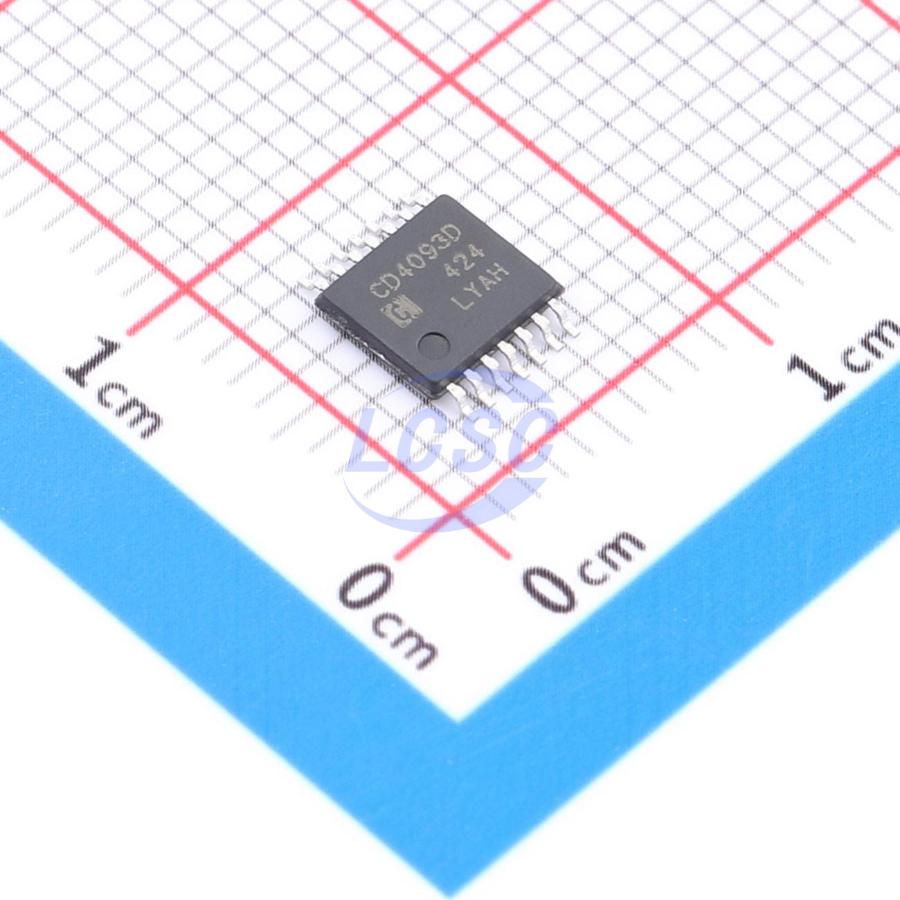

CD4093DMT/TR
IC Gate 4 Channel TSSOP-14
TSSOP-14RoHSActive
2-input NAND gate with Schmitt input characteristics
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4093DMT/TR
- Store part #
- C20613273
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,885 in stock
#C20613273
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.29 | ₹86.45 |
| 50+ | ₹13.64 | ₹682.00 |
| 150+ | ₹11.80 | ₹1,770.00 |
| 500+ | ₹10.44 | ₹5,220.00 |
| 2,500+ | ₹9.34 | ₹23,350.00 |
| 5,000+ | ₹8.80 | ₹44,000.00 |
5 × ₹17.29
₹86.45
excl. GST
₹102.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4093DMT/TR
₹86.45 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000 Series
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 60ns@15V,51pF
- Operating Temperature
- 0℃~+60℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1.2uA
- Current - Output High(IOH)
- 13.7mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 32.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.335 g
Overview
Applications
- Electronic switching
- Industrial control applications
- Signal oscillator/generator
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4093AMT/TR#C46635760HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,490 | ₹17.08 · 2,490 in stock | View |
