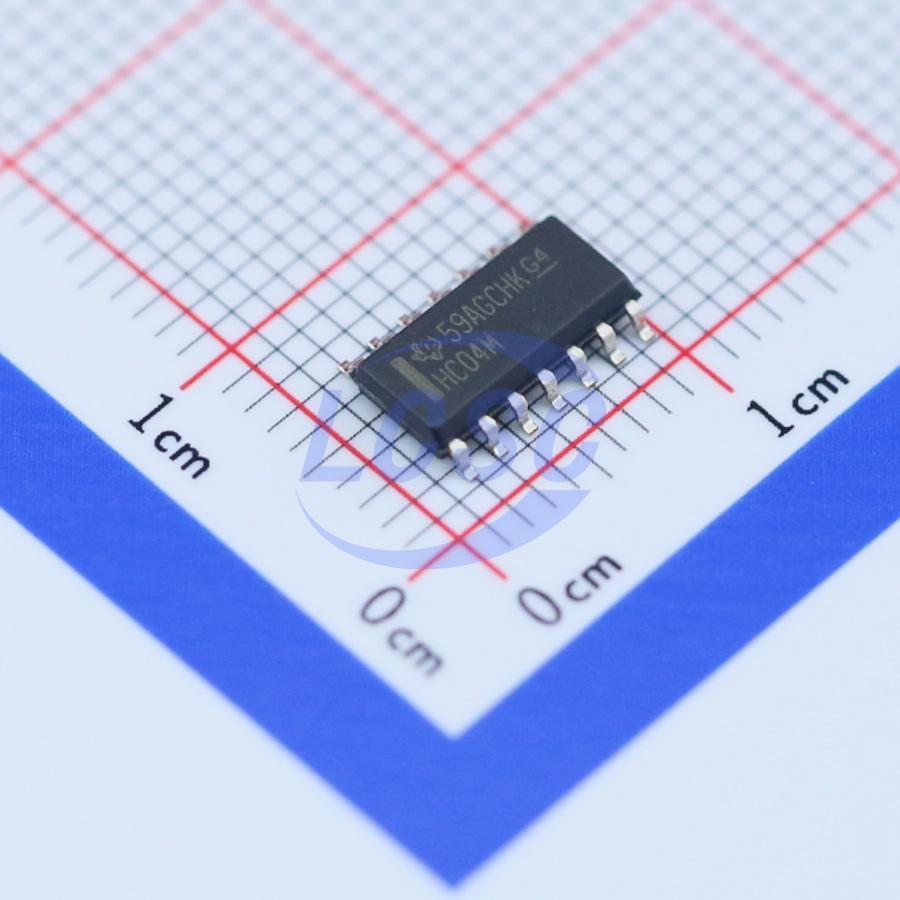

CD74HC04M96
2V~6V 14ns@6V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
High-Speed CMOS Logic Hex Inverter
- Manufacturer
- TI
- Manufacturer part #
- CD74HC04M96
- Store part #
- C107295
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C107295
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.64 | ₹238.20 |
| 50+ | ₹38.20 | ₹1,910.00 |
| 150+ | ₹34.15 | ₹5,122.50 |
| 500+ | ₹29.09 | ₹14,545.00 |
| 2,500+ | ₹25.55 | ₹63,875.00 |
| 5,000+ | ₹24.20 | ₹1,21,000.00 |
5 × ₹47.64
₹238.20
excl. GST
₹281.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC04M96
₹238.20 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 14ns@6V,50pF
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 3.7V;5.2V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
CD54HC04, CD54HCT04, CD74HC04, and CD74HCT04 are high-speed CMOS logic hex inverter gates fabricated using silicon gate CMOS technology, achieving operating speeds comparable to LSTTL gates while maintaining the low-power characteristics of standard CMOS ICs. All devices are capable of driving 10 LSTTL loads.
Key features
- Buffered Inputs
- Typical Propagation Delay: 6ns at Vcc = 5V, cL = 15pF, TA = 25°C
- Fanout (Over Temperature Range)
- Standard Outputs: 10 LSTTL Loads
- Bus Driver Outputs: 15 LSTTL Loads
- Wide Operating Temperature Range: -55°C to 125°C
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
- HC Types
- 2-V to 6-V Operation
- High Noise Immunity: NIL = 30%, NIμ = 30% of Vcc at Vcc = 5V
- HCT Types
- 4.5-V to 5.5-V Operation
- Direct LSTTL Input Logic Compatibility, VI L = 0.8V (Max), VI H = 2V (Min)
- CMOS Input Compatibility, I ≤ 1μA at VO L, VO H
