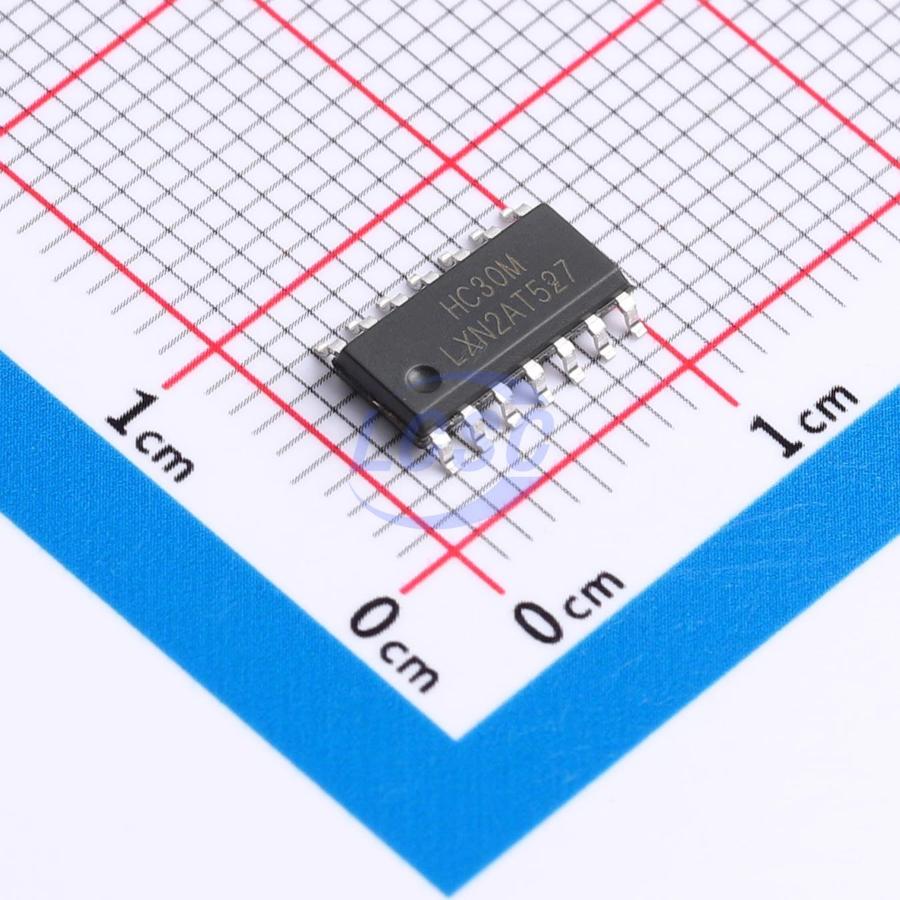

CD74HC30M(LX)
StandardCMOS 2V~6V 26ns@4.5V,50pF 2uA SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- lingxingic
- Manufacturer part #
- CD74HC30M(LX)
- Store part #
- C52097908
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,095 in stock
#C52097908
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.00 | ₹105.00 |
| 50+ | ₹16.62 | ₹831.00 |
| 150+ | ₹14.72 | ₹2,208.00 |
| 500+ | ₹12.38 | ₹6,190.00 |
| 2,500+ | ₹11.34 | ₹28,350.00 |
| 4,000+ | ₹10.72 | ₹42,880.00 |
5 × ₹21.00
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD74HC30M(LX)
₹105.00 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- CD74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 26ns@4.5V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 8;1
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.242 g
Overview
CD74HC/HCT30 is an 8-input NAND gate. The inputs include clamp diodes, which allow input interfacing to voltages above VCC using current-limiting resistors.
Key features
- Input levels: CMOS for CD74HC30; TTL for CD74HCT30
- Specified operating temperature range: -40℃ ~ +125℃
- Package options: DIP14 / SOP14 / TSSOP14
