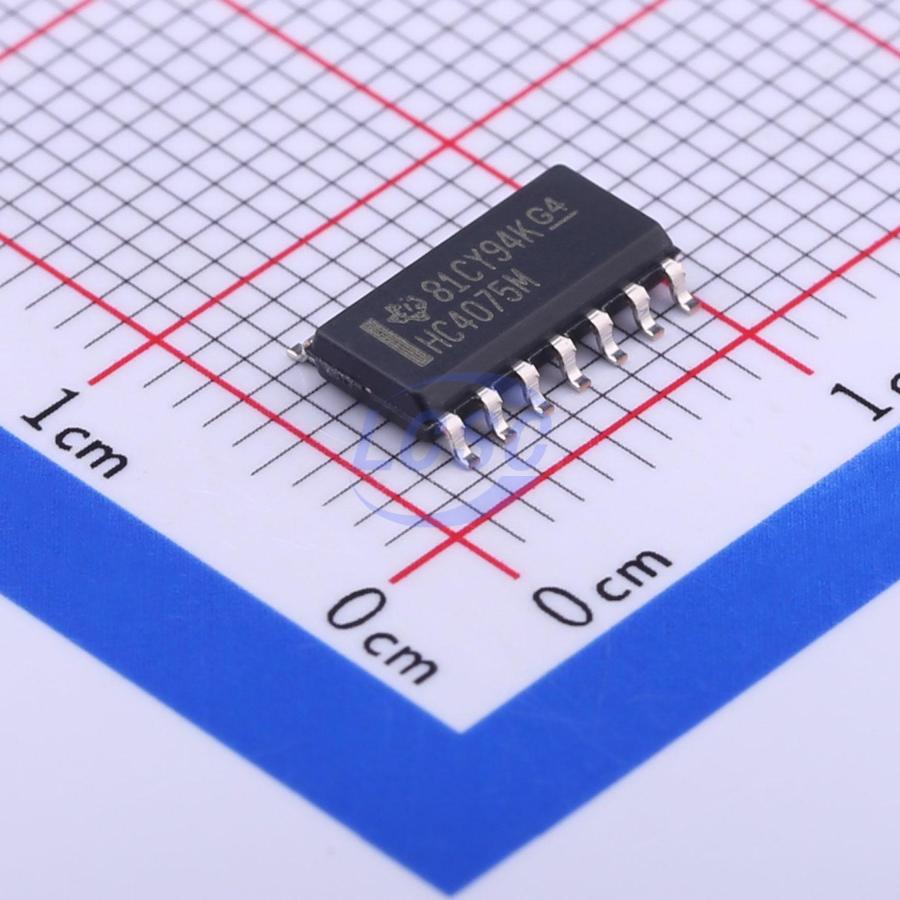

CD74HC4075M96
2uA 2V~6V 17ns@6V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
High-Speed CMOS Logic Triple 3-Input OR Gate
- Manufacturer
- TI
- Manufacturer part #
- CD74HC4075M96
- Store part #
- C6547
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
892 in stock
#C6547
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.54 | ₹81.54 |
| 10+ | ₹68.93 | ₹689.30 |
| 30+ | ₹60.01 | ₹1,800.30 |
| 100+ | ₹52.84 | ₹5,284.00 |
| 500+ | ₹50.45 | ₹25,225.00 |
| 1,000+ | ₹49.14 | ₹49,140.00 |
1 × ₹81.54
₹81.54
excl. GST
₹96.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC4075M96
₹81.54 for 1 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.98V;3.84V;3.7V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 5.2mA
- Output Logic Level - Low
- 100mV;260mV;330mV;400mV
- Propagation Delay
- 17ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The 'HC4075 and 'HCT4075 logic gates utilize silicon-gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The HCT logic family is functionally pin compatible with the standard LS logic family.
Key features
- Buffered Inputs
- Typical Propagation Delay: 8ns at VCC = 5V, CL = 15pF, TA = 25℃
- Fanout (Over Temperature Range)
- Standard Outputs, 10 LSTTL Loads
- Bus Driver Outputs 15 LSTTL Loads
- Wide Operating Temperature Range: -55℃ to 125℃
- Balanced Propagation Delay and Transition Times
- Significant Power Reduction Compared to LSTTL Logic ICs
- HC Types
- 2V to 6V Operation
- High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
- HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VIL = 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, II ≤ 1μA at VOL, VOH
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC4075D-Q100J#C547042Nexperia · SO-14 | Nexperia | SO-14 | 226 | ₹128.11 · 226 in stock | View |
 | 74HC4075D,653#C547041Nexperia · SO-14 | Nexperia | SO-14 | 1 | ₹61.60 · 1 in stock | View |
 | SN74HCS4075QDRQ1#C2878737TI · SOIC-14 | TI | SOIC-14 | 11 | ₹145.42 · 11 in stock | View |
 | EM74HC4075D#C49188225EnergyMath · SOP-14L | EnergyMath | SOP-14L | 35 | ₹21.45 · 35 in stock | View |
| 74HC4075D-Q100118#C4472518Nexperia · SO-14 | Nexperia | SO-14 | On request | ₹35.87 · 0 in stock | View | |
