TIDatasheet (PDF)

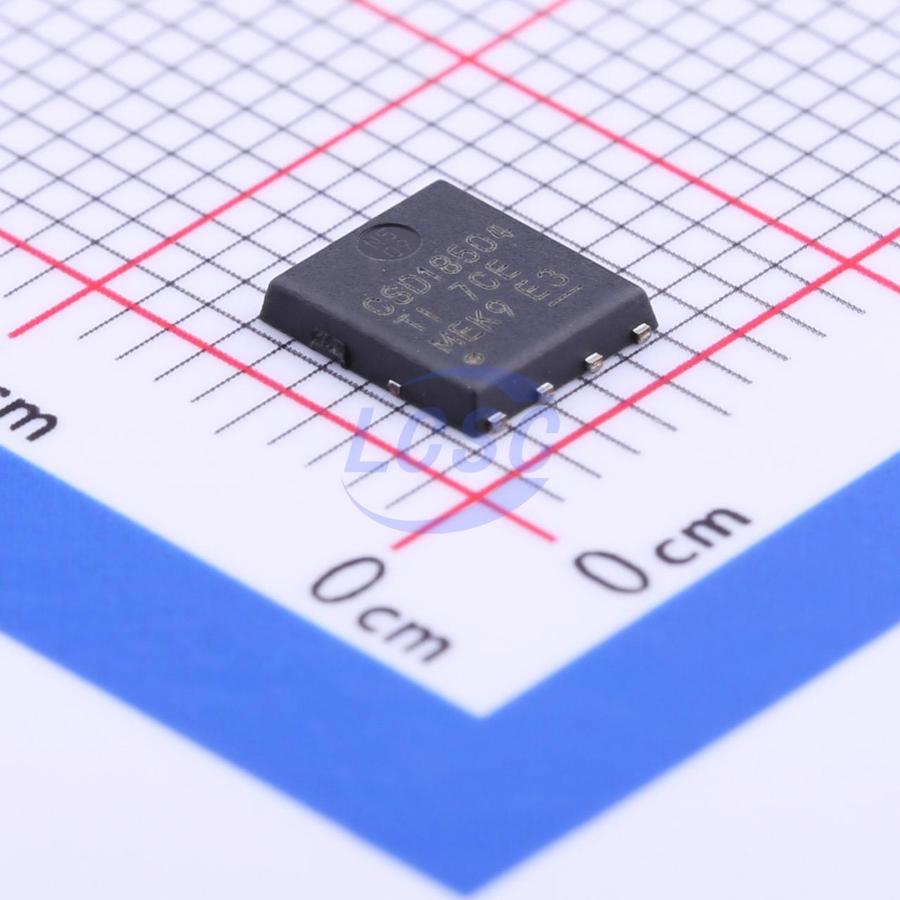

CSD18504Q5A
N-Channel 40V 75A 3.1W Surface Mount SON-8(5x6)
SON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 40V 75A SON-8(5x6)
- Manufacturer
- TI
- Manufacturer part #
- CSD18504Q5A
- Store part #
- C78118
- Package / case
- SON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
647 in stock
#C78118
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.17 | ₹193.17 |
| 10+ | ₹159.49 | ₹1,594.90 |
| 30+ | ₹141.23 | ₹4,236.90 |
| 100+ | ₹120.38 | ₹12,038.00 |
| 500+ | ₹103.21 | ₹51,605.00 |
| 1,000+ | ₹99.08 | ₹99,080.00 |
1 × ₹193.17
₹193.17
excl. GST
₹227.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD18504Q5A
₹193.17 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 1.656nF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 9.6pF
- RDS(on)
- 7.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.7nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.9V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
This 5.3 mΩ, SON 5 mm×6 mm, 40 V NexFET power MOSFET is designed to minimize losses in power conversion applications.
Applications
- DC-DC Conversion
- Secondary Side Synchronous Rectifier
- Battery Motor Control
Key features
- Ultra-Low Qg and Qgd
- Low Thermal Resistance Avalanche Rated
- Logic Level
- Pb Free Terminal Plating
- RoHS Compliant Halogen Free SON 5 mm×6 mm Plastic Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LWT4008AD5#C54221187Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,620 | ₹29.45 · 4,620 in stock | View |
 | FH1604G#C2929036XIN FEI HONG · PDFN-8(5x6) | XIN FEI HONG | PDFN-8(5x6) | 5,110 | ₹26.37 · 5,110 in stock | View |
 | CSD18501Q5A#C471047TI · VSONP-8(4.9x6) | TI | VSONP-8(4.9x6) | 117 | ₹410.75 · 117 in stock | View |
 | CSD18509Q5B#C553147TI · VSON-CLIP-8(6x5) | TI | VSON-CLIP-8(6x5) | 48 | ₹231.21 · 48 in stock | View |
 | HKTG48N10#C5364296Guangdong Hottech · PDFN5x6-8 | Guangdong Hottech | PDFN5x6-8 | 4,190 | ₹56.60 · 4,190 in stock | View |
