DIODESDatasheet (PDF)

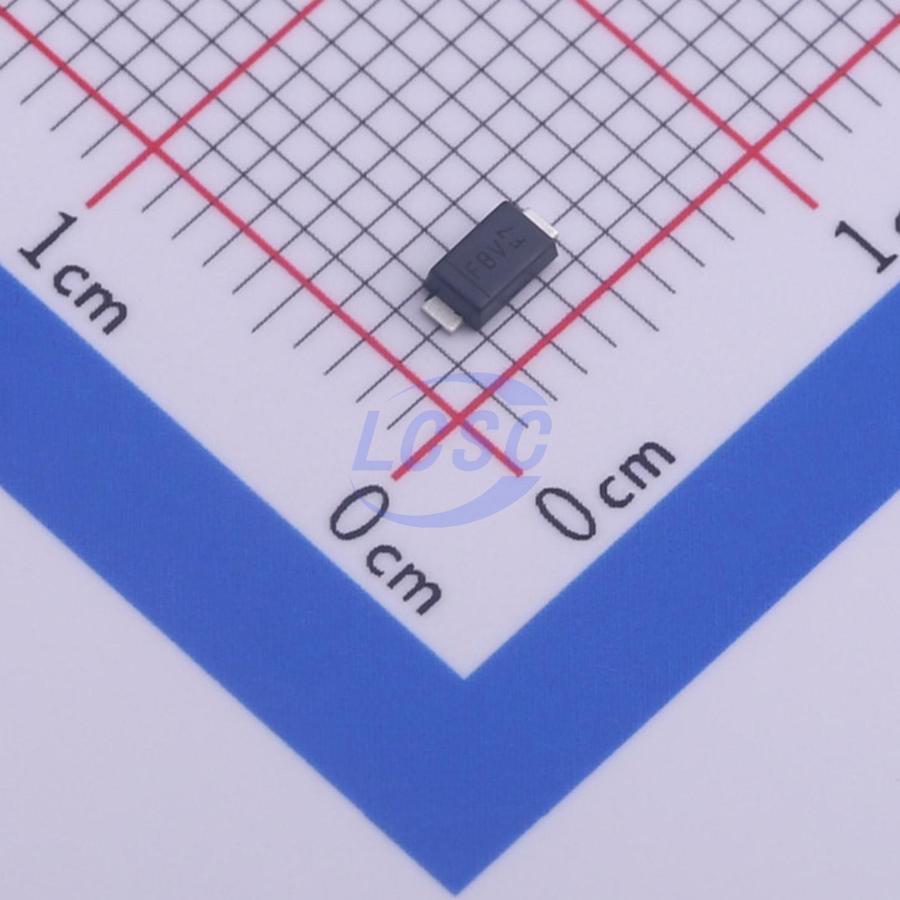

DFLT20A-7
32.4VC Clamp 6.94A Ipp TVS DIODE PowerDI123
PowerDI123ROHS3 CompliantActive
TVS DIODE 20VWM 32.4VC PowerDI123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLT20A-7
- Store part #
- C460597
- Package / case
- PowerDI123
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C460597
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.05 | ₹64.05 |
| 10+ | ₹62.83 | ₹628.30 |
| 30+ | ₹62.01 | ₹1,860.30 |
| 100+ | ₹60.99 | ₹6,099.00 |
1 × ₹64.05
₹64.05
excl. GST
₹75.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLT20A-7
₹64.05 for 1 + GST
Specifications
- Clamping Voltage
- 32.4V
- Peak Pulse Current (Ipp)
- 6.94A
- Peak Pulse Power Dissipation (Ppp)
- 225W
- Number of Channels
- 1
- Voltage - Breakdown
- 22.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
Key features
- 225W Peak Pulse Power Dissipation (10 μs x 1000 μs Waveform)
- 5.0V to 220V Standoff Voltages
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An Automotive-Compliant Part is Available Under Separate Datasheet (DFLTXXX/AQ)
