DIODESDatasheet (PDF)

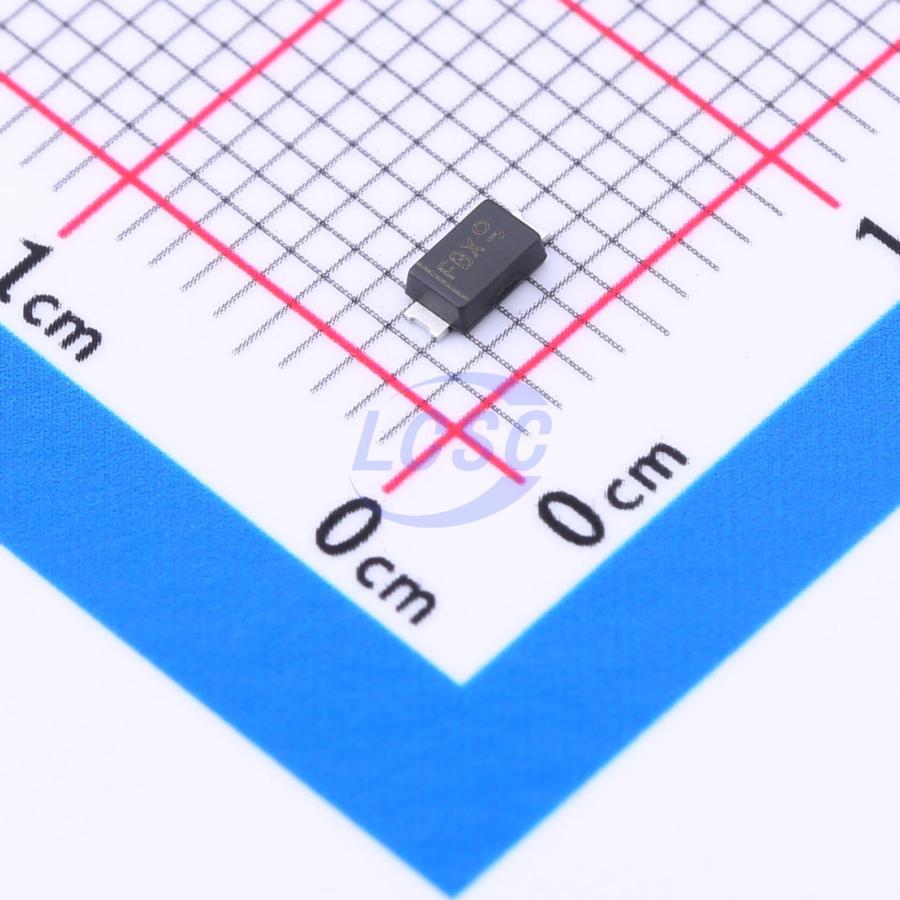

DFLT22AQ-7
35.5VC Clamp 6.34A Ipp TVS DIODE PowerDI-123
PowerDI-123ROHS3 CompliantActive
TVS DIODE 22VWM 35.5VC PowerDI-123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLT22AQ-7
- Store part #
- C5248810
- Package / case
- PowerDI-123
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C5248810
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.50 | ₹43.50 |
1 × ₹43.50
₹43.50
excl. GST
₹51.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
DFLT22AQ-7
₹43.50 for 1 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.34A
- Peak Pulse Power Dissipation (Ppp)
- 225W
- Number of Channels
- 1
- Voltage - Breakdown
- 26.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
Key features
- 225W Peak Pulse Power Dissipation (10 μs x 1000 μs Waveform)
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DFLT22A-7#C1975431DIODES · PowerDI123 | DIODES | PowerDI123 | 1,985 | ₹20.00 · 1,985 in stock | View |
 | DFLT24A-7#C460447DIODES · PowerDI123 | DIODES | PowerDI123 | 215 | ₹45.63 · 215 in stock | View |
 | DFLT20AQ-7#C5248809DIODES · PowerDI-123 | DIODES | PowerDI-123 | 100 | ₹15.32 · 100 in stock | View |
 | DFLT24AQ-7#C5248811DIODES · PowerDI-123 | DIODES | PowerDI-123 | 80 | ₹49.53 · 80 in stock | View |
 | DFLT20A-7#C460597DIODES · PowerDI123 | DIODES | PowerDI123 | 11 | ₹64.05 · 11 in stock | View |
