DIODESDatasheet (PDF)

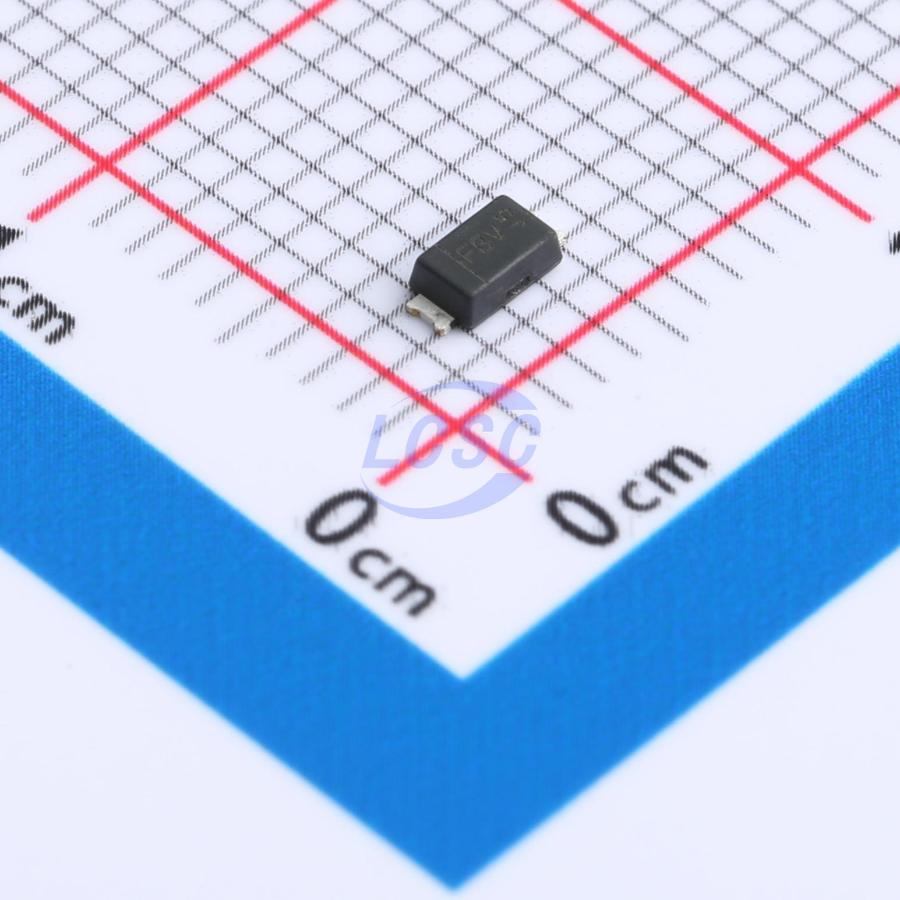

DFLT20AQ-7
32.4VC Clamp 6.94A Ipp TVS DIODE PowerDI-123
PowerDI-123ROHS3 CompliantActive
TVS DIODE 20VWM 32.4VC PowerDI-123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLT20AQ-7
- Store part #
- C5248809
- Package / case
- PowerDI-123
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5248809
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.32 | ₹76.60 |
| 50+ | ₹14.99 | ₹749.50 |
| 150+ | ₹14.78 | ₹2,217.00 |
| 500+ | ₹14.55 | ₹7,275.00 |
5 × ₹15.32
₹76.60
excl. GST
₹90.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLT20AQ-7
₹76.60 for 5 + GST
Specifications
- Clamping Voltage
- 32.4V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.94A
- Peak Pulse Power Dissipation (Ppp)
- 225W
- Number of Channels
- 1
- Voltage - Breakdown
- 24.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Key features
- 225W Peak Pulse Power Dissipation (10 μs x 1000 μs Waveform)
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DFLT20A-7#C460597DIODES · PowerDI123 | DIODES | PowerDI123 | 11 | ₹64.05 · 11 in stock | View |
 | DFLT22AQ-7#C5248810DIODES · PowerDI-123 | DIODES | PowerDI-123 | 78 | ₹43.50 · 78 in stock | View |
 | DFLT22A-7#C1975431DIODES · PowerDI123 | DIODES | PowerDI123 | 1,985 | ₹20.00 · 1,985 in stock | View |
| DFLT18AQ-7#C1973819DIODES · PowerDI-123 | DIODES | PowerDI-123 | On request | ₹34.42 · 0 in stock | View | |
 | DFLT18A-7#C443642DIODES · PowerDI123 | DIODES | PowerDI123 | On request | ₹30.81 · 0 in stock | View |
