DIODESDatasheet (PDF)

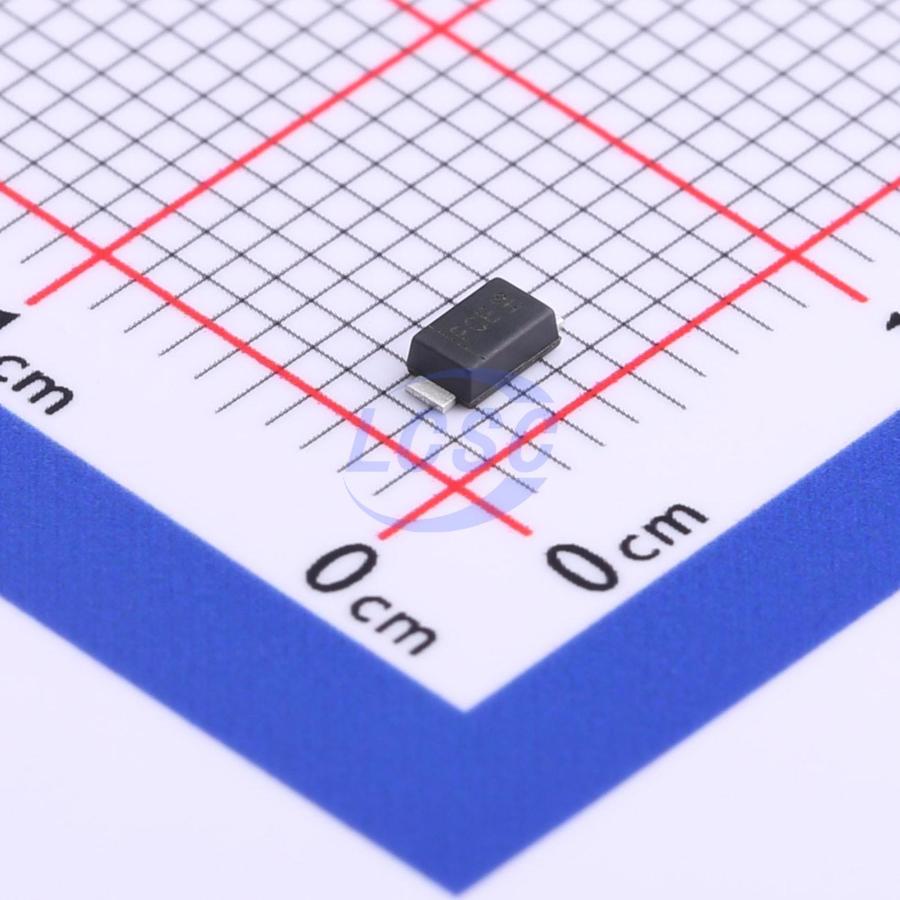

DFLT26A-7
42.1VC Clamp 5.35A Ipp TVS DIODE PowerDI123
PowerDI123ROHS3 CompliantActive
TVS DIODE 26VWM 42.1VC PowerDI123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLT26A-7
- Store part #
- C531178
- Package / case
- PowerDI123
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C531178
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.90 | ₹134.50 |
| 50+ | ₹26.33 | ₹1,316.50 |
| 150+ | ₹25.94 | ₹3,891.00 |
| 500+ | ₹25.56 | ₹12,780.00 |
5 × ₹26.90
₹134.50
excl. GST
₹158.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLT26A-7
₹134.50 for 5 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 5.35A
- Peak Pulse Power Dissipation (Ppp)
- 225W
- Number of Channels
- 1
- Voltage - Breakdown
- 28.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Key features
- 225W Peak Pulse Power Dissipation (10 μs x 1000 μs Waveform)
- 5.0V to 220V Standoff Voltages
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An Automotive-Compliant Part is Available Under Separate Datasheet (DFLTXXX/AQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DFLT26AQ-7#C5248812DIODES · PowerDI-123 | DIODES | PowerDI-123 | 20 | ₹27.72 · 20 in stock | View |
 | DFLT24AQ-7#C5248811DIODES · PowerDI-123 | DIODES | PowerDI-123 | 80 | ₹49.53 · 80 in stock | View |
 | DFLT24A-7#C460447DIODES · PowerDI123 | DIODES | PowerDI123 | 215 | ₹45.63 · 215 in stock | View |
 | DFLT28A-7#C1980545DIODES · PowerDI123 | DIODES | PowerDI123 | 45 | ₹36.90 · 45 in stock | View |
 | DFLT27A-7#C3033174DIODES · PowerDI123 | DIODES | PowerDI123 | On request | ₹29.54 · 0 in stock | View |
