DIODESDatasheet (PDF)

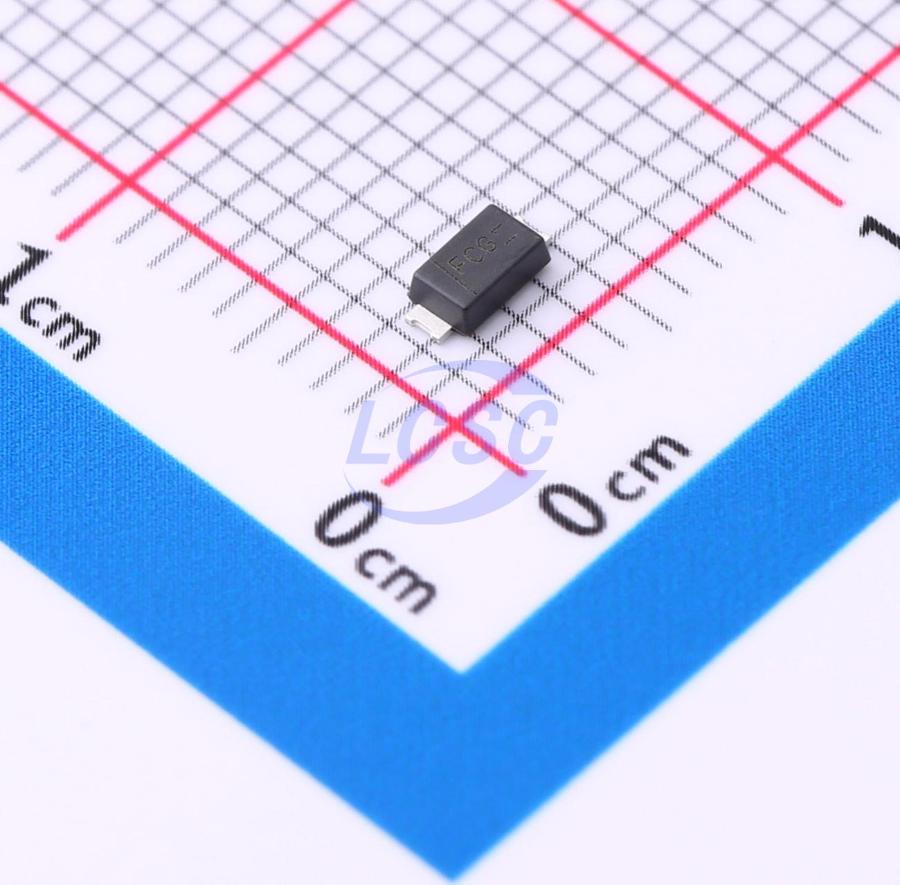

DFLT28A-7
45.4VC Clamp 4.96A Ipp TVS DIODE PowerDI123
PowerDI123ROHS3 CompliantActive
TVS DIODE 28VWM 45.4VC PowerDI123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLT28A-7
- Store part #
- C1980545
- Package / case
- PowerDI123
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C1980545
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.90 | ₹184.50 |
5 × ₹36.90
₹184.50
excl. GST
₹217.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLT28A-7
₹184.50 for 5 + GST
Specifications
- Clamping Voltage
- 45.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 4.96A
- Peak Pulse Power Dissipation (Ppp)
- 225W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 34.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
Key features
- 225W Peak Pulse Power Dissipation (10 μs x 1000 μs Waveform)
- 5.0V to 220V Standoff Voltages
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An Automotive-Compliant Part is Available Under Separate Datasheet (DFLTXXX/AQ)
