DIODESDatasheet (PDF)

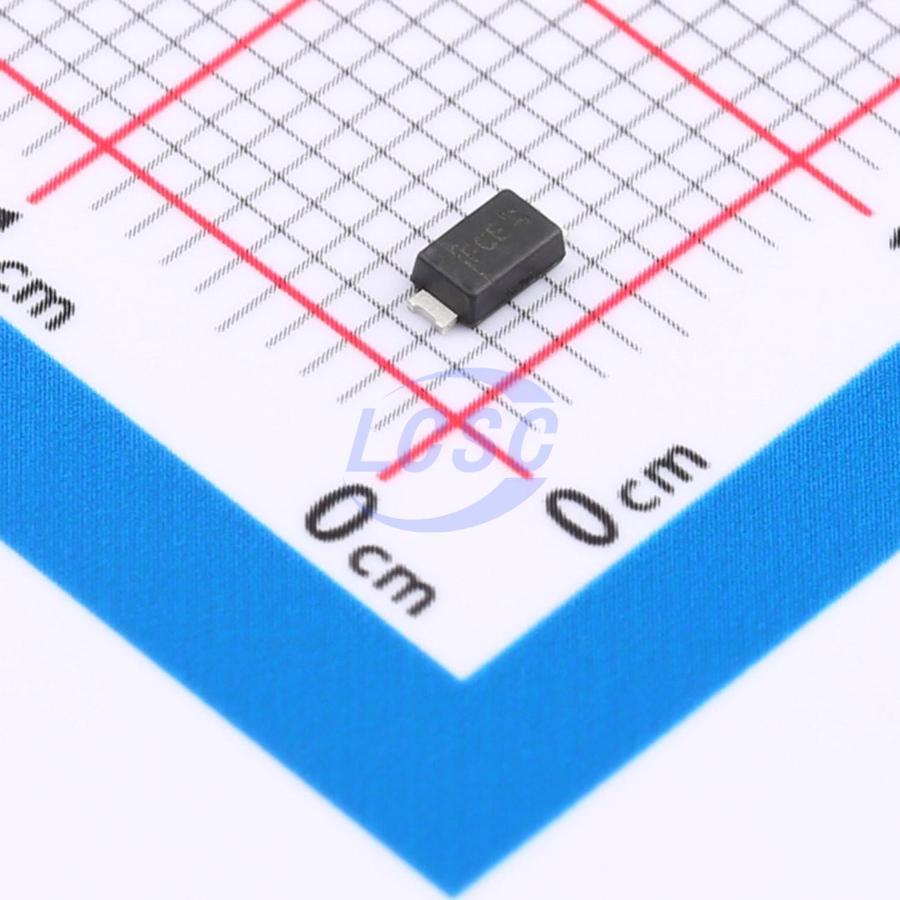

DFLT26AQ-7
42.1VC Clamp 5.35A Ipp TVS DIODE PowerDI-123
PowerDI-123ROHS3 CompliantActive
TVS DIODE 26VWM 42.1VC PowerDI-123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLT26AQ-7
- Store part #
- C5248812
- Package / case
- PowerDI-123
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5248812
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.72 | ₹138.60 |
| 50+ | ₹27.27 | ₹1,363.50 |
| 150+ | ₹26.96 | ₹4,044.00 |
| 500+ | ₹26.67 | ₹13,335.00 |
5 × ₹27.72
₹138.60
excl. GST
₹163.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per reel
DFLT26AQ-7
₹138.60 for 5 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5.35A
- Peak Pulse Power Dissipation (Ppp)
- 225W
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 50 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.068 g
Overview
Key features
- 225W Peak Pulse Power Dissipation (10 μs x 1000 μs Waveform)
- Excellent Clamping Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
