DIODESDatasheet (PDF)

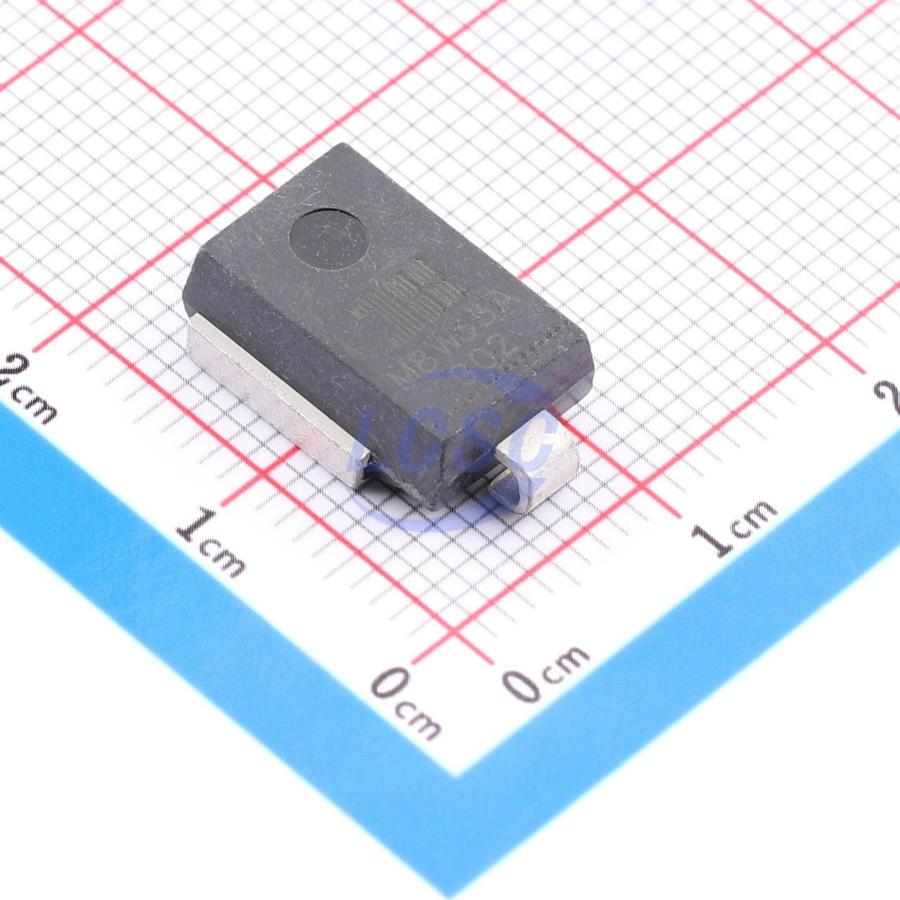

DM8W33AQ-13
53.3VC Clamp 124A@10/1000us Ipp TVS DIODE DO-218
DO-218ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DM8W33AQ-13
- Store part #
- C1974436
- Package / case
- DO-218
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1974436
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹563.86 | ₹563.86 |
| 10+ | ₹549.34 | ₹5,493.40 |
| 30+ | ₹539.78 | ₹16,193.40 |
| 100+ | ₹530.25 | ₹53,025.00 |
1 × ₹563.86
₹563.86
excl. GST
₹665.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
DM8W33AQ-13
₹563.86 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 124A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 40.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.42 g
Overview
Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against load-dump surge according to ISO16750-2. Compliance with following standards: ISO 16750-2, Pulse A and Pulse B ISO 7637-2 Pulse 1, Pulse 2a, Pulse 3a, Pulse 3b
Applications
- automotive applications
Key features
- 6600W Peak Pulse Power Dissipation
- C TJ=+175°C Capability Suitable for High Reliability and Automotive Requirement High Current Capability
- Glass Passivated Die Construction
- Excellent High-Temperature Stability
- Meets ISO7637-2 Surge Capability
- Meets ISO16750-2 Surge Specification
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S33A-MS#C19272802MSKSEMI · DO-218AB | MSKSEMI | DO-218AB | 193 | ₹107.59 · 193 in stock | View |
 | SM8S33AHM3/I#C29264938VISHAY · DO-218AC | VISHAY | DO-218AC | 2,519 | ₹261.61 · 2,519 in stock | View |
 | SM8S33A-AL#C5138040Jiangsu JieJie Microelectronics · DO-218AB | Jiangsu JieJie Microelectronics | DO-218AB | 126 | ₹159.13 · 126 in stock | View |
 | SM8S33A#C5455807XCH · DO-218 | XCH | DO-218 | 367 | ₹134.05 · 367 in stock | View |
 | SM8S33AHE3_A/I#C335622VISHAY · DO-218AB | VISHAY | DO-218AB | 4,561 | ₹228.91 · 4,561 in stock | View |
