VISHAYDatasheet (PDF)

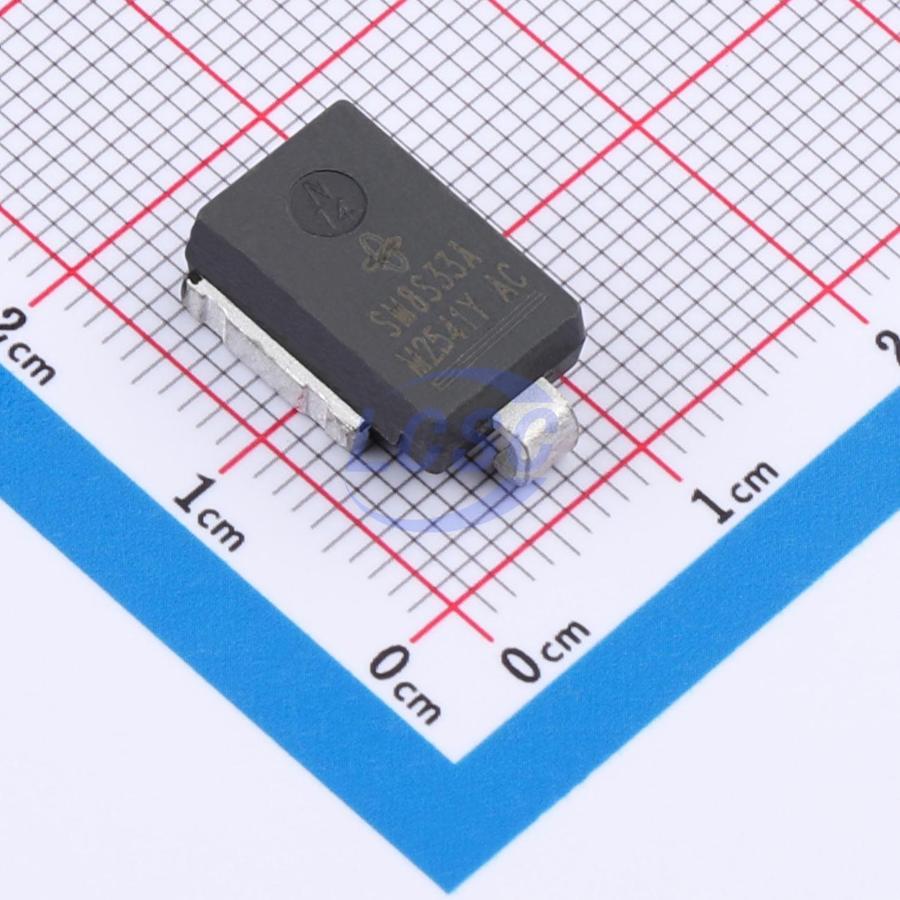

SM8S33AHM3/I
53.3V 124A@10/1000us 6.6kW@10/1000us 38.7V Unidirectional 33V DO-218AC TVS Diodes RoHS
DO-218ACROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S33AHM3/I
- Store part #
- C29264938
- Package / case
- DO-218AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,519 in stock
#C29264938
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.61 | ₹261.61 |
| 10+ | ₹219.75 | ₹2,197.50 |
| 30+ | ₹193.37 | ₹5,801.10 |
| 100+ | ₹166.57 | ₹16,657.00 |
| 750+ | ₹154.35 | ₹1,15,762.50 |
| 1,500+ | ₹149.12 | ₹2,23,680.00 |
1 × ₹261.61
₹261.61
excl. GST
₹308.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S33AHM3/I
₹261.61 for 1 + GST
Specifications
- Clamping Voltage
- 53.3V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 124A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 38.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.498 g
Overview
Applications
- Protection for sensitive electronic equipment against voltage transients caused by inductive load switching and lightning strikes, particularly suited for automotive load dump protection applications.
Key features
- Junction passivation optimized design with passivated anisotropic rectifier technology
- T_J = 175°C operating capability for high-reliability and automotive applications
- Unipolar polarity only
- Low leakage current
- Low forward voltage drop
- High surge capability
- Compliant with ISO7637-2 surge specification (varies by test conditions)
- MSL Level 1 per J-STD-020, LF max peak 245°C
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S33A-MS#C19272802MSKSEMI · DO-218AB | MSKSEMI | DO-218AB | 193 | ₹107.59 · 193 in stock | View |
 | DM8W33AQ-13#C1974436DIODES · DO-218 | DIODES | DO-218 | 10 | ₹563.86 · 10 in stock | View |
 | SM8S33AHE3_A/I#C335622VISHAY · DO-218AB | VISHAY | DO-218AB | 4,561 | ₹228.91 · 4,561 in stock | View |
 | SM8S33A#C484312Yint · DO-218AB | Yint | DO-218AB | 1 | ₹192.22 · 1 in stock | View |
 | SM8S33A#C312613DOWO · DO-218AB | DOWO | DO-218AB | 10,405 | ₹124.83 · 10,405 in stock | View |
