DIODESDatasheet (PDF)

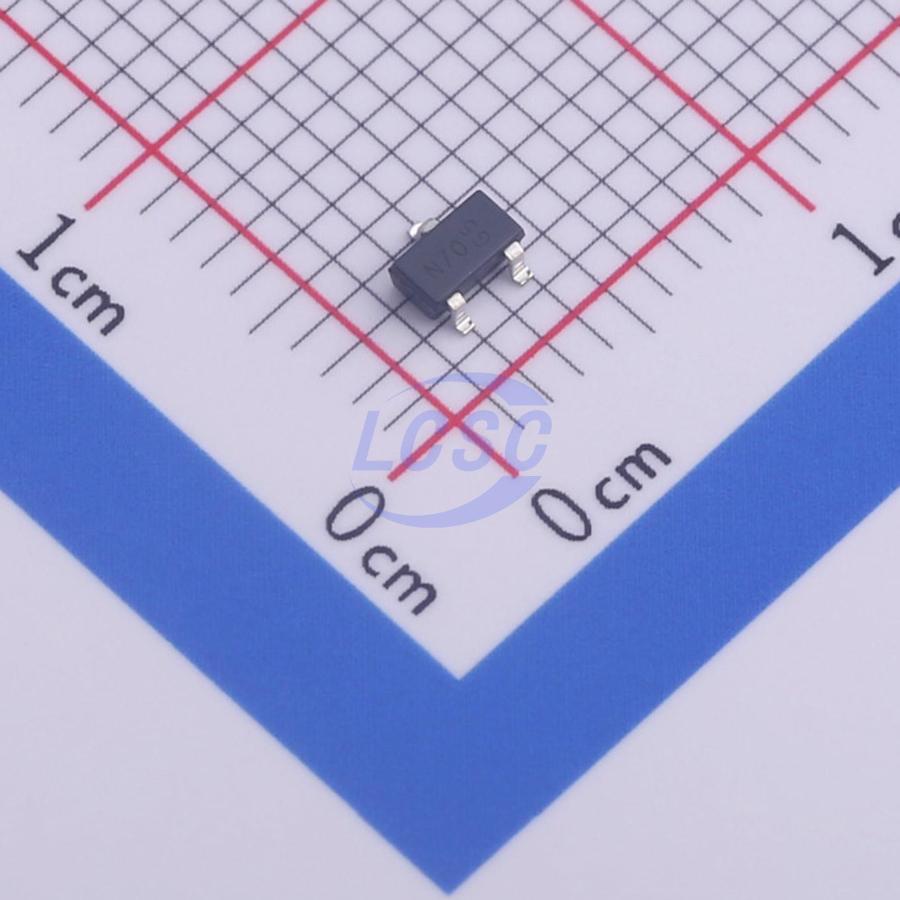

DMN3070SSN-7
780mW 30V 5.1A 50mΩ@4.5V 1 N-channel N-Channel SC-59 Single FETs, MOSFETs RoHS
SC-59ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3070SSN-7
- Store part #
- C461014
- Package / case
- SC-59
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
245 in stock
#C461014
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.54 | ₹47.70 |
| 50+ | ₹9.34 | ₹467.00 |
| 150+ | ₹9.22 | ₹1,383.00 |
| 500+ | ₹9.09 | ₹4,545.00 |
5 × ₹9.54
₹47.70
excl. GST
₹56.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3070SSN-7
₹47.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 97pF
- Ciss-Input Capacitance
- 697pF
- Pd - Power Dissipation
- 780mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.1A
- Reverse Transfer Capacitance (Crss)
- 67pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Load switch
- DC-DC converter
- Power management functions
Key features
- Low on-resistance
- Gate ESD protection
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL3406#C2760866Slkor · SOT-23-3 | Slkor | SOT-23-3 | 750 | ₹6.99 · 750 in stock | View |
 | WST3408#C148350Winsok Semicon · SOT-23 | Winsok Semicon | SOT-23 | 2,105 | ₹11.48 · 2,105 in stock | View |
 | PMV15ENEAR#C553080Nexperia · SOT-23 | Nexperia | SOT-23 | 1 | ₹107.73 · 1 in stock | View |
 | DMG3404L-7#C96615DIODES · SOT-23 | DIODES | SOT-23 | 1,670 | ₹20.82 · 1,670 in stock | View |
 | DMN3033LSNQ-7#C156290DIODES · SC-59 | DIODES | SC-59 | 1,530 | ₹30.34 · 1,530 in stock | View |
