DIODESDatasheet (PDF)

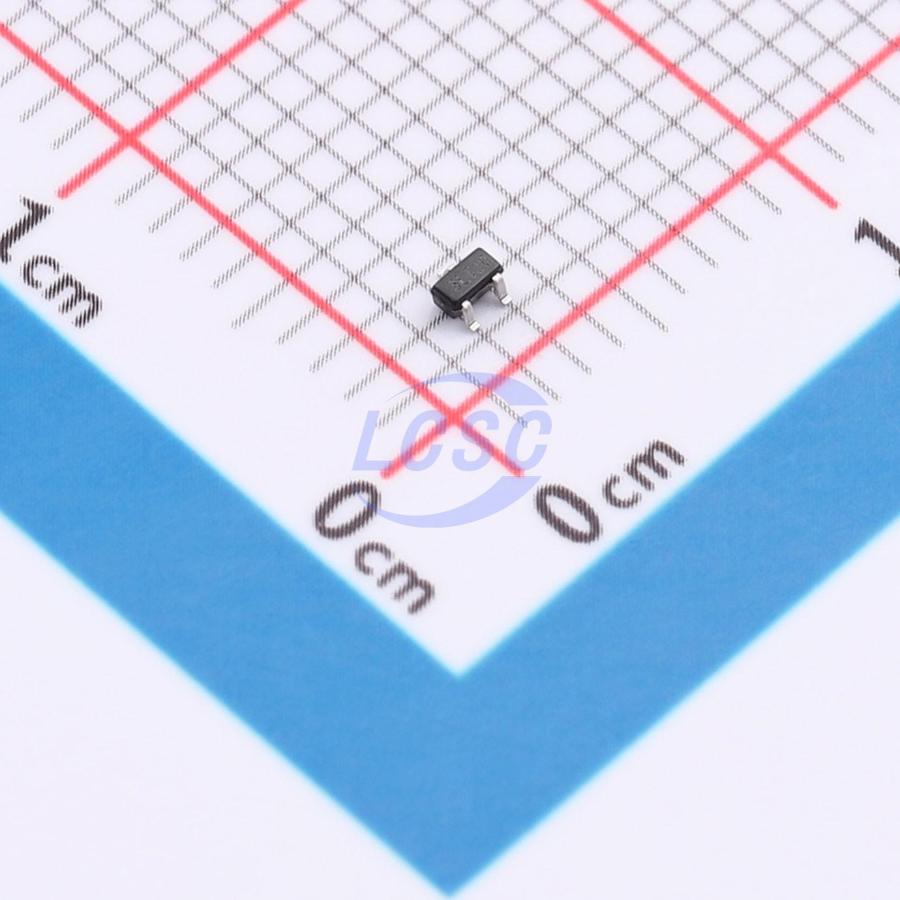

DMN33D8LTQ-7
30V 115mA 240mW 5Ω@4V 1 N-channel SOT-523 Single FETs, MOSFETs RoHS
SOT-523ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN33D8LTQ-7
- Store part #
- C6934851
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C6934851
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.20 | ₹63.20 |
| 10+ | ₹62.34 | ₹623.40 |
| 30+ | ₹61.90 | ₹1,857.00 |
| 100+ | ₹61.27 | ₹6,127.00 |
1 × ₹63.20
₹63.20
excl. GST
₹74.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN33D8LTQ-7
₹63.20 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 115mA
- Ciss-Input Capacitance
- 48pF
- Pd - Power Dissipation
- 240mW
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 5Ω@4V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 550pC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. AEC-Q101 qualified and PPAP-supported, it is ideally suited for the following applications: - Brushless DC motor control - DC-DC converters - Load switching
Applications
- Brushless DC motor control
- DC-DC converter
- Load switch
Key features
- N-channel MOSFET
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Compact SMT package
- 2KV ESD-protected gate
- Fully lead-free and RoHS compliant
- Halogen and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN33D8LTQ-13#C5441039DIODES · SOT-523 | DIODES | SOT-523 | 5 | ₹15.78 · 5 in stock | View |
 | DMN33D8LT-7#C2974173DIODES · SOT-523 | DIODES | SOT-523 | 205 | ₹20.16 · 205 in stock | View |
| BSS138KT-TP#C3280263MCC · SOT-523 | MCC | SOT-523 | 840 | ₹4.29 · 840 in stock | View | |
 | DMN53D0LT-7#C5374774DIODES · SOT-523 | DIODES | SOT-523 | 5,715 | ₹10.45 · 5,715 in stock | View |
 | DMN313DLT-7#C155524DIODES · SOT-523 | DIODES | SOT-523 | 470 | ₹8.59 · 470 in stock | View |
