DIODESDatasheet (PDF)

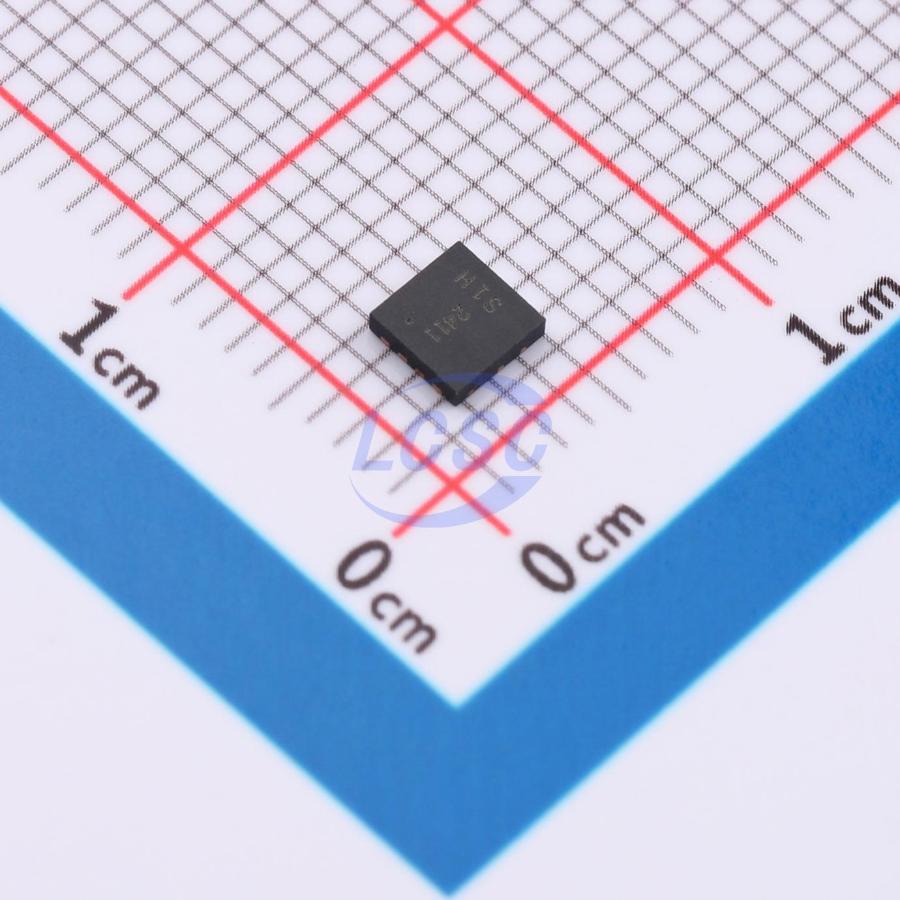

DMT10H015LFG-7
100V 42A 35W 13.5mΩ@10V 1 N-channel PowerDI3333-8 Single FETs, MOSFETs RoHS
PowerDI3333-8ROHS3 CompliantActive
MOSFET N-CH 100V 42A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMT10H015LFG-7
- Store part #
- C5245407
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
73 in stock
#C5245407
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹425.91 | ₹425.91 |
| 10+ | ₹371.37 | ₹3,713.70 |
| 30+ | ₹337.25 | ₹10,117.50 |
| 100+ | ₹302.27 | ₹30,227.00 |
| 500+ | ₹286.61 | ₹1,43,305.00 |
| 1,000+ | ₹279.67 | ₹2,79,670.00 |
1 × ₹425.91
₹425.91
excl. GST
₹502.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMT10H015LFG-7
₹425.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 42A
- Ciss-Input Capacitance
- 1.871nF
- Pd - Power Dissipation
- 35W
- RDS(on)
- 13.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.107 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Synchronous rectifier
- Backlight illumination
- Power management
- DC-DC converter
Key features
- Low RDS(ON) — minimizes conduction losses
- Excellent Qgd × RDS(ON) product (figure of merit)
- Advanced technology for DC/DC converters
- Small, thermally efficient package for higher-density end products
- Occupies only 33% of the board area of an SO-8 package, enabling smaller end products
- 100% single-pulse avalanche energy (UIS) rated
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free; "Green" device
- Device meets JEDEC standards (as referenced in AEC-Q) for high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SISS46DN-T1-GE3#C3279454VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 20 | ₹292.54 · 20 in stock | View | |
 | CSD19537Q3T#C134143TI · VSONP-8(3.3x3.3) | TI | VSONP-8(3.3x3.3) | 465 | ₹296.29 · 465 in stock | View |
 | CSD19537Q3#C478469TI · VSON-8-EP(3.3x3.3) | TI | VSON-8-EP(3.3x3.3) | 2,020 | ₹111.78 · 2,020 in stock | View |
| DMT10H015LFG-13#C6021899DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 1,899 | ₹72.80 · 1,899 in stock | View | |
 | SISS5108DN-T1-GE3#C20346156VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 6 | ₹202.31 · 6 in stock | View |
