DIODESDatasheet (PDF)

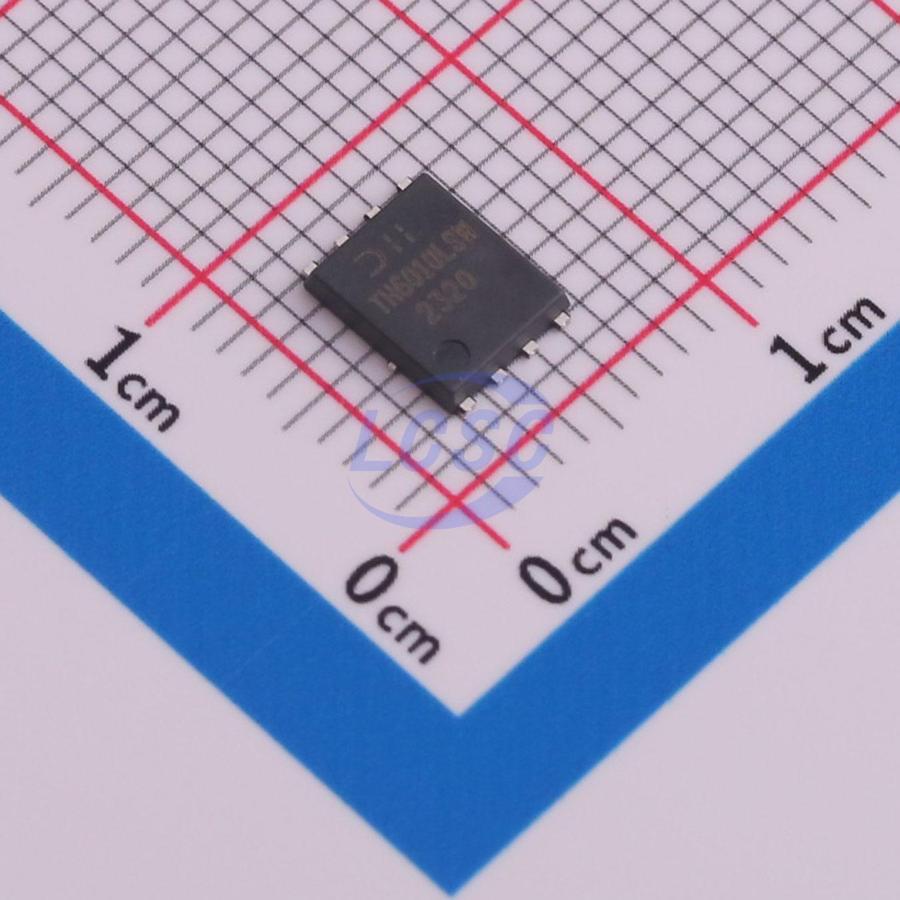

DMTH6010LPSWQ-13
N-Channel 60V 98A 115W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET N-CH 60V 98A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMTH6010LPSWQ-13
- Store part #
- C6183752
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
665 in stock
#C6183752
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.29 | ₹58.29 |
| 10+ | ₹51.41 | ₹514.10 |
| 30+ | ₹47.75 | ₹1,432.50 |
| 100+ | ₹44.31 | ₹4,431.00 |
| 500+ | ₹42.38 | ₹21,190.00 |
| 1,000+ | ₹41.30 | ₹41,300.00 |
1 × ₹58.29
₹58.29
excl. GST
₹68.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMTH6010LPSWQ-13
₹58.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 746pF
- Current - Continuous Drain(Id)
- 98A
- Ciss-Input Capacitance
- 2.09nF
- Pd - Power Dissipation
- 115W
- Reverse Transfer Capacitance (Crss)
- 38.5pF
- RDS(on)
- 5.3mΩ@10V;7.9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. AEC-Q101 qualified and PPAP-supported, it is ideally suited for the following applications: - Engine management systems - Body control electronics - DC-DC converters
Applications
- Engine Management Systems - Body Control Electronics - DC-DC Converters
Key features
- Rated up to +175°C — ideal for high-temperature environments
- 100% unclamped inductive switching (UIS) tested during production — ensures greater reliability and durability in end applications
- Low on-resistance RDS(ON) — minimizes conduction losses
- Low input capacitance
- Fast switching speed
- Solderable gull-wing leads for optical inspection
- Lead-free plating; RoHS compliant
- Halogen- and antimony-free. "Green" device
- Suitable for automotive applications requiring specific change control; this product is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF16949-certified facility.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA6064#C53244011HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 2,085 | ₹41.03 · 2,085 in stock | View |
| BSC072N08NS5-MS#C51927961MSKSEMI · DFN-8L(5x6) | MSKSEMI | DFN-8L(5x6) | 5,067 | ₹139.13 · 5,067 in stock | View | |
| BSC037N08NS5-MS#C51927966MSKSEMI · DFN-8L(5x6) | MSKSEMI | DFN-8L(5x6) | 417 | ₹168.50 · 417 in stock | View | |
 | NTMFS005N10MCLT1G-HXY#C51949333HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 47 | ₹161.41 · 47 in stock | View |
 | SIR104LDP-T1-RE3-HXY#C51949335HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 48 | ₹180.84 · 48 in stock | View |
