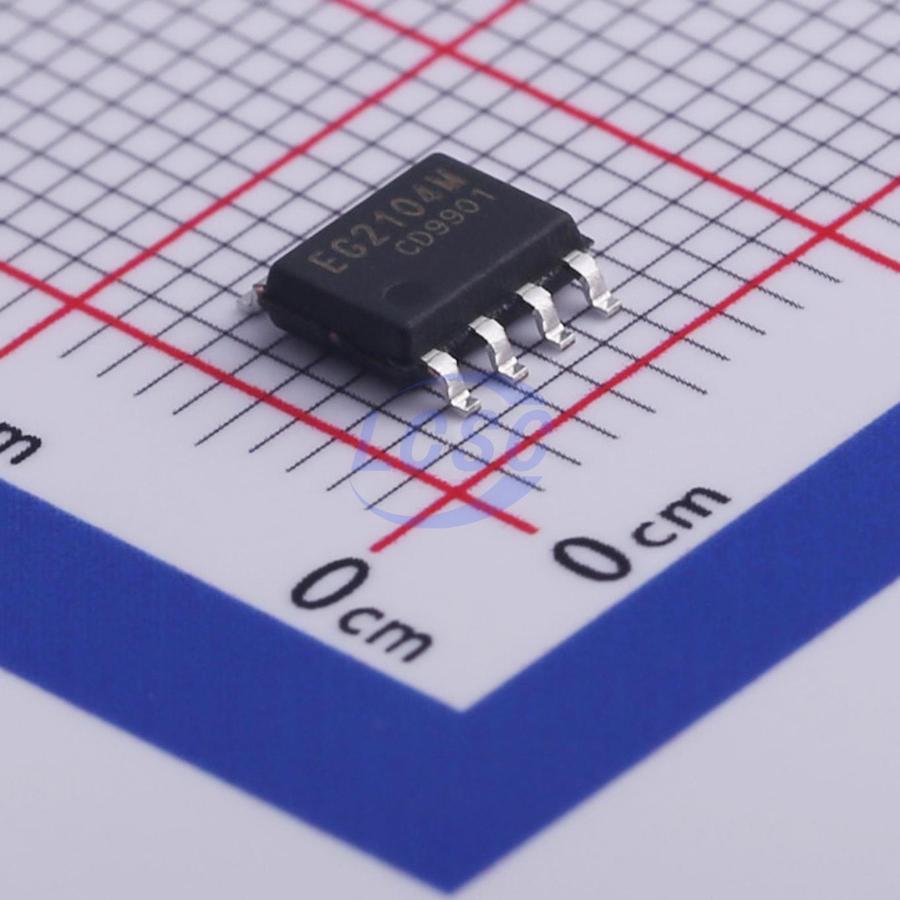

EG2104M
Gate Driver IC MOSFET IGBT SOIC-8
MOSFET driver IC with SD function
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2104M
- Store part #
- C480653
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,680 in stock
#C480653
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.17 | ₹215.85 |
| 50+ | ₹33.74 | ₹1,687.00 |
| 150+ | ₹29.69 | ₹4,453.50 |
| 500+ | ₹24.63 | ₹12,315.00 |
| 2,500+ | ₹22.31 | ₹55,775.00 |
| 4,000+ | ₹20.96 | ₹83,840.00 |
5 × ₹43.17
₹215.85
excl. GST
₹254.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2104M
₹215.85 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Low Level Delay Time
- 800ns
- High Level Delay Time
- 160ns
- Quiescent Current
- 100uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.181 g
Overview
EG2104M is a cost-effective gate driver IC dedicated to MOS and IGBT transistors with SD(overline) functionality. It integrates logic signal input processing, dead-time control, level shifting, pulse filtering, and output drive circuits, designed specifically for brushless motor controllers and DC-DC power converter drive circuits. The EG2104M supports a high-side operating voltage up to 600V, with a wide low-side Vcc supply voltage range of 10V~20V. The input channel IN features a built-in 200K pull-down resistor, and SD(overline) features a built-in 200K pull-down resistor, ensuring both high-side and low-side power MOS transistors remain off when inputs are floating. Output current capability is IO +/-0.3A/0.6A, packaged in SOP8.
Applications
- Mobile power high-voltage fast-charging switching power supply
- Wireless charging driver
- Variable frequency pump controller
- DC-DC power supply
- Brushless motor driver
- High-voltage Class-D amplifier
Key features
- High-side floating bootstrap supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- Undervoltage lockout (UVLO) protection on VCC and VB supply pins
- Low-side VCC voltage range: 10V - 20V
- Output current capability: |0 +/- 0.3A/0.6A
- Built-in dead-time control circuit
- SD(overline) input channel active-low, shuts down HO and LO outputs
- Minimal external components
- Package: SOP-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| EG2003D#C54795670EG Micro · SOP-8 | EG Micro | SOP-8 | 3,915 | ₹20.73 · 3,915 in stock | View | |
 | EG2184#C2929094EG Micro · SOP-8 | EG Micro | SOP-8 | 2,584 | ₹72.86 · 2,584 in stock | View |
| EG2031#C48580221EG Micro · SOP-8-150mil | EG Micro | SOP-8-150mil | 11,670 | ₹13.19 · 11,670 in stock | View | |
 | EG2131#C5240691EG Micro · SOP-8-150mil | EG Micro | SOP-8-150mil | 74,415 | ₹19.42 · 74,415 in stock | View |
 | EG2131D#C53368407EG Micro · SOP-8 | EG Micro | SOP-8 | On request | ₹12.73 · 0 in stock | View |
