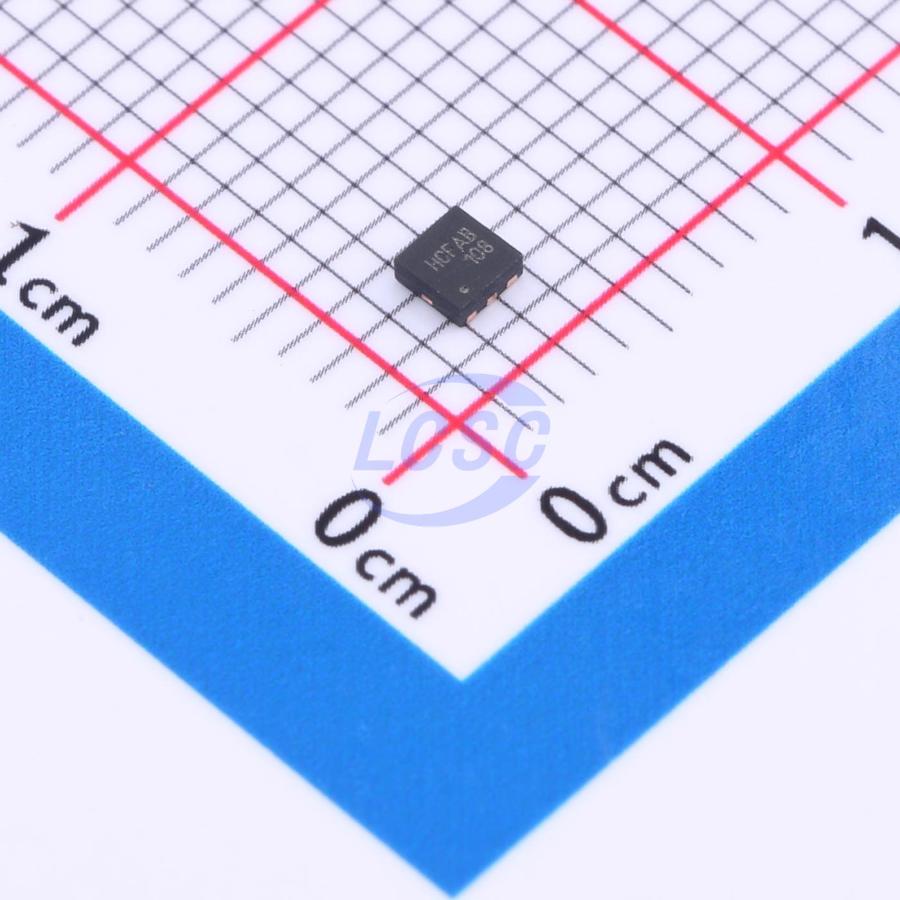

FDMA86108LZ
N-Channel 100V 2.2A 2.4W Surface Mount VDFN-6(2x2)
VDFN-6(2x2)ROHS3 CompliantActive
MOSFET N-CH 100V 2.2A VDFN-6(2x2)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMA86108LZ
- Store part #
- C890905
- Package / case
- VDFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C890905
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.37 | ₹150.37 |
| 10+ | ₹126.69 | ₹1,266.90 |
| 30+ | ₹113.66 | ₹3,409.80 |
| 100+ | ₹99.09 | ₹9,909.00 |
| 500+ | ₹81.93 | ₹40,965.00 |
| 1,000+ | ₹79.10 | ₹79,100.00 |
1 × ₹150.37
₹150.37
excl. GST
₹177.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMA86108LZ
₹150.37 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 23pF
- Ciss-Input Capacitance
- 163pF
- Pd - Power Dissipation
- 2.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 2.2A
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 243mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
This device has been designed to provide maximum efficiency and thermal performance for synchronous buck converters. The low rDS(on) and gate charge provide excellent switching performance.
Applications
- DC – DC Buck Converters
Key features
- Maximum on-resistance rDS(on) = 243 mΩ at VGS = 10 V, ID = 2.2 A
- Maximum on-resistance rDS(on) = 366 mΩ at VGS = 4.5 V, ID = 1.8 A
- Low profile — new MicroFET 2x2 mm package with maximum height of 0.8 mm
- Halogen-free and antimony oxide-free
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HSCB0012#C42376790HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 2,830 | ₹14.91 · 2,830 in stock | View | |
 | FDMA86251#C890907onsemi · VDFN-6(2x2) | onsemi | VDFN-6(2x2) | 100 | ₹241.30 · 100 in stock | View |
 | HSCB0010E#C53243993HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 1,210 | ₹29.12 · 1,210 in stock | View |
 | AON2290#C5451855AOS · DFN2x2B | AOS | DFN2x2B | 2,919 | ₹62.14 · 2,919 in stock | View |
 | DMT10H072LFDFQ-7#C5221855DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 729 | ₹85.61 · 729 in stock | View |
