VBsemi ElecDatasheet (PDF)

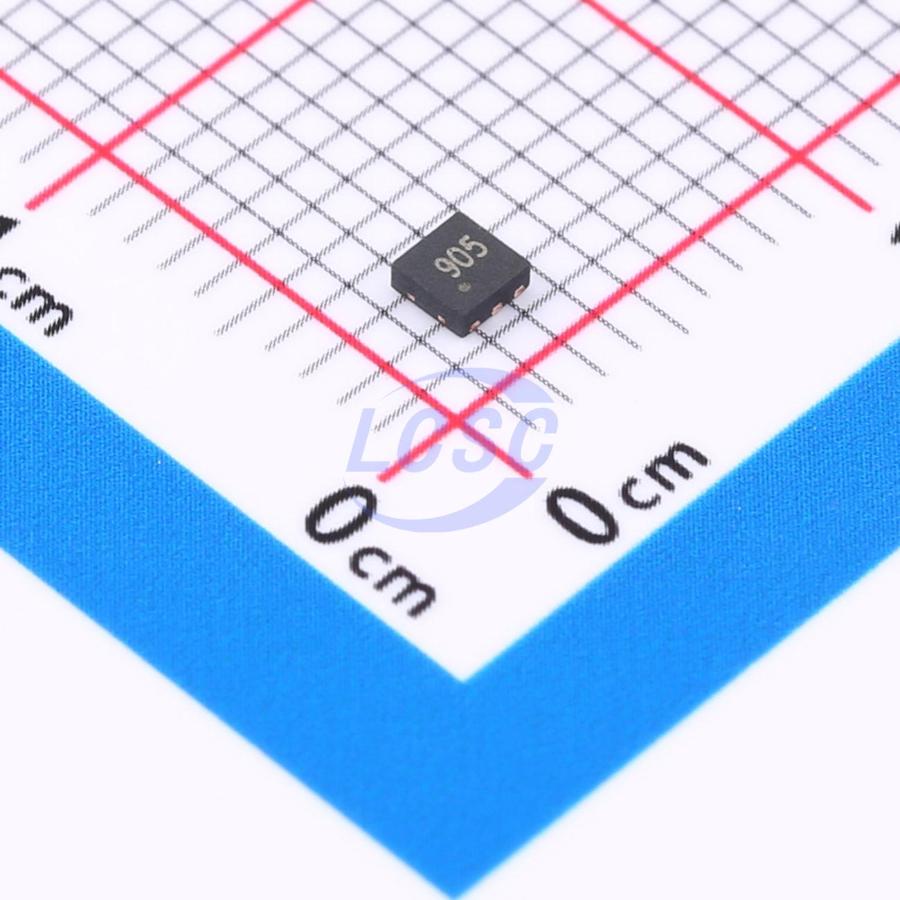

FDMA905P-VB
P-Channel 20V 10A 19W Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET P-CH 20V 10A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDMA905P-VB
- Store part #
- C47993939
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993939
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.63 | ₹69.63 |
| 10+ | ₹55.24 | ₹552.40 |
| 30+ | ₹49.00 | ₹1,470.00 |
| 100+ | ₹41.26 | ₹4,126.00 |
| 500+ | ₹37.82 | ₹18,910.00 |
| 1,000+ | ₹35.89 | ₹35,890.00 |
1 × ₹69.63
₹69.63
excl. GST
₹82.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMA905P-VB
₹69.63 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Pd - Power Dissipation
- 19W
- RDS(on)
- 40mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 50nC@8V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Applications
- Portable devices - Load switch - Battery switch - Charger switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
