VBsemi ElecDatasheet (PDF)

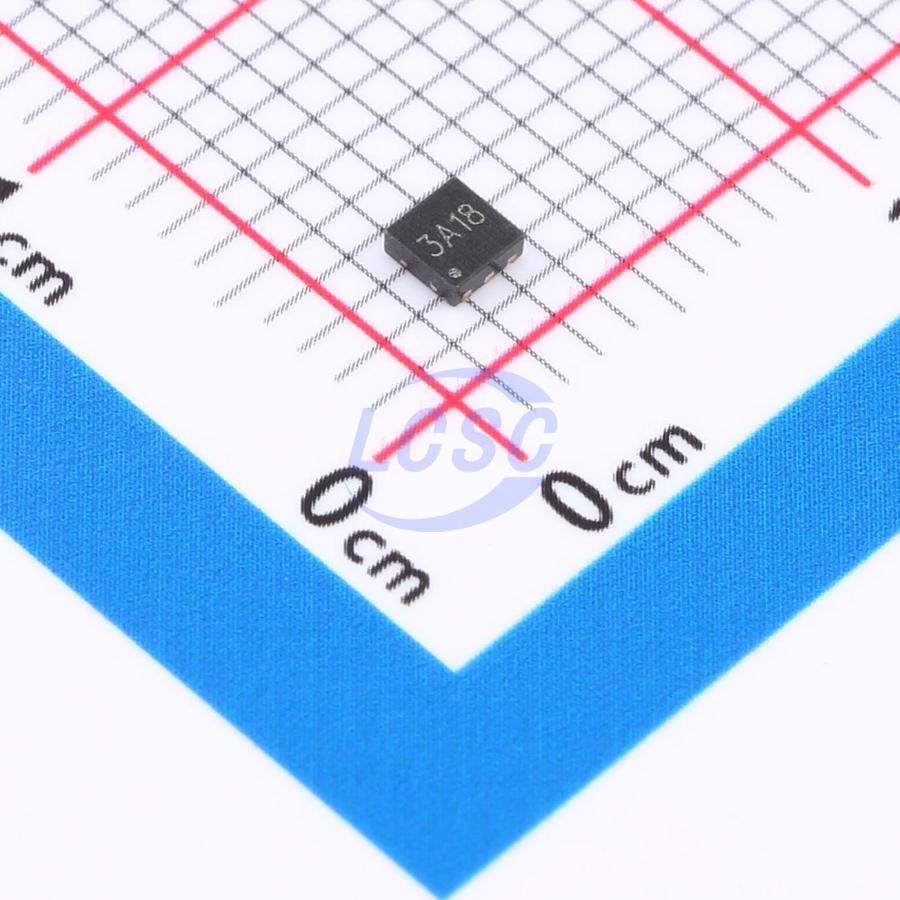

NTLUS3A18PZTBG-VB
P-Channel 20V 10A Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET P-CH 20V 10A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTLUS3A18PZTBG-VB
- Store part #
- C47993772
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C47993772
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.20 | ₹76.20 |
| 10+ | ₹61.61 | ₹616.10 |
| 30+ | ₹55.51 | ₹1,665.30 |
| 100+ | ₹47.68 | ₹4,768.00 |
| 500+ | ₹38.33 | ₹19,165.00 |
| 1,000+ | ₹36.36 | ₹36,360.00 |
1 × ₹76.20
₹76.20
excl. GST
₹89.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTLUS3A18PZTBG-VB
₹76.20 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Pd - Power Dissipation
- 19W
- RDS(on)
- 40mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 60nC@8V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
Applications
- Portable devices
- Load switch
- Battery switch
- Charger switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMA905P-VB#C47993939VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹69.63 · 10 in stock | View |
 | FDMA291P-VB#C47993995VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹69.63 · 10 in stock | View |
 | aon2411-VB#C47993877VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹69.63 · 10 in stock | View |
 | VBQG2216#C47993656VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹69.63 · 10 in stock | View |
 | NTLJS3113PT1G-VB#C47993775VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹88.18 · 10 in stock | View |
