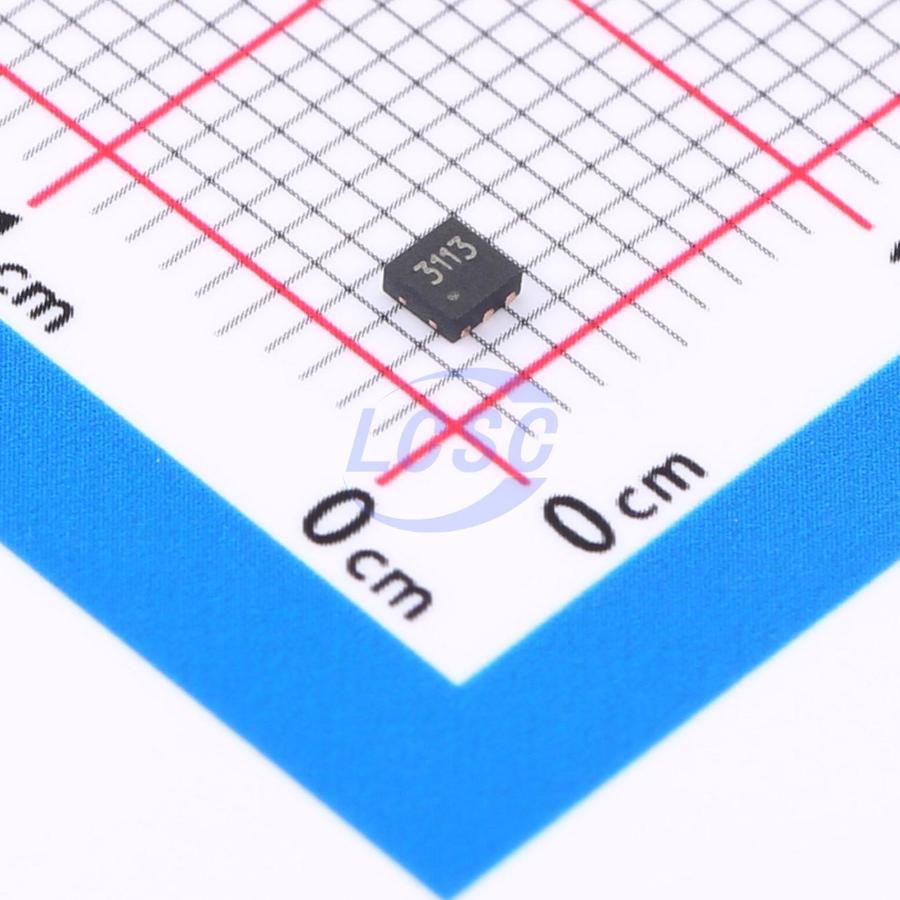

NTLJS3113PT1G-VB
P-Channel 20V 10A Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET P-CH 20V 10A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTLJS3113PT1G-VB
- Store part #
- C47993775
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993775
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.18 | ₹88.18 |
| 10+ | ₹73.59 | ₹735.90 |
| 30+ | ₹67.27 | ₹2,018.10 |
| 100+ | ₹59.44 | ₹5,944.00 |
| 500+ | ₹38.33 | ₹19,165.00 |
| 1,000+ | ₹36.36 | ₹36,360.00 |
1 × ₹88.18
₹88.18
excl. GST
₹104.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTLJS3113PT1G-VB
₹88.18 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Pd - Power Dissipation
- 19W
- RDS(on)
- 40mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 75nC@8V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Applications
- Portable devices - Load switch - Battery switch - Charger switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBQG2216#C47993656VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹69.63 · 10 in stock | View |
 | FDME905PT-VB#C47993926VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 9 | ₹73.85 · 9 in stock | View |
 | FDME910PZT-VB#C47993956VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 20 | ₹68.02 · 20 in stock | View |
 | NTLUS3A18PZTBG-VB#C47993772VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 7 | ₹76.20 · 7 in stock | View |
 | FDMA905P-VB#C47993939VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹69.63 · 10 in stock | View |
