VBsemi ElecDatasheet (PDF)

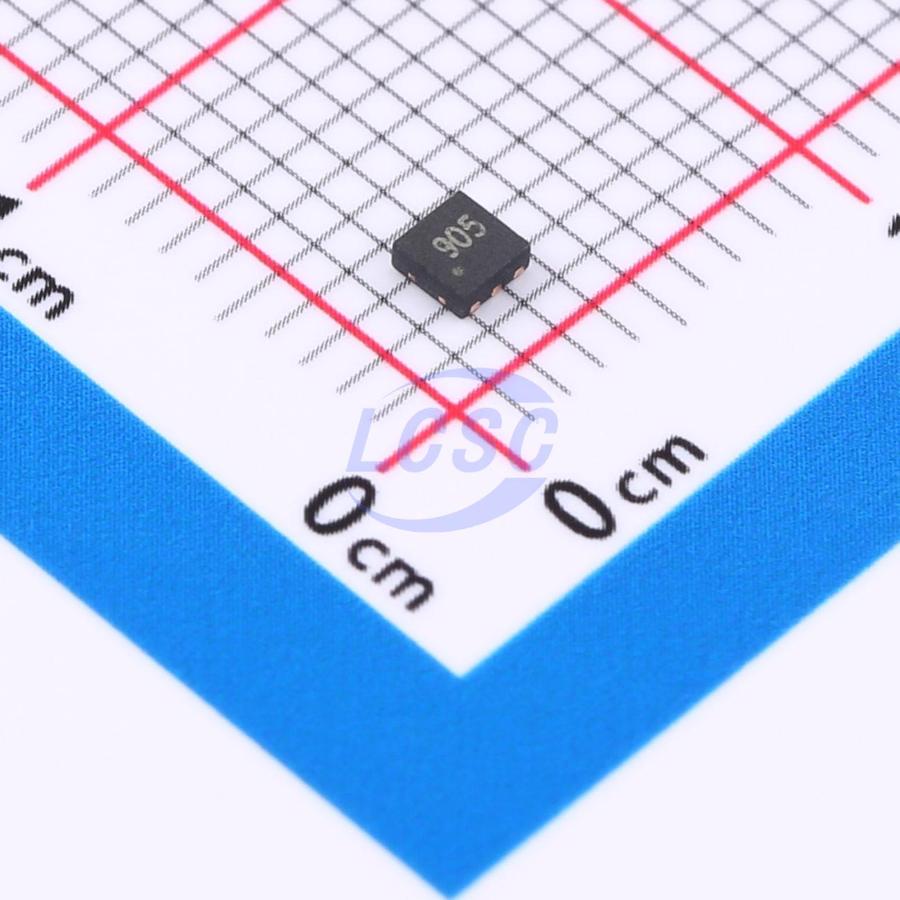

FDME905PT-VB
P-Channel 20V 10A 19W Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET P-CH 20V 10A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDME905PT-VB
- Store part #
- C47993926
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C47993926
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.85 | ₹73.85 |
| 10+ | ₹59.42 | ₹594.20 |
| 30+ | ₹53.40 | ₹1,602.00 |
| 100+ | ₹45.64 | ₹4,564.00 |
| 500+ | ₹42.20 | ₹21,100.00 |
| 1,000+ | ₹40.05 | ₹40,050.00 |
1 × ₹73.85
₹73.85
excl. GST
₹87.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDME905PT-VB
₹73.85 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Pd - Power Dissipation
- 19W
- RDS(on)
- 40mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 75nC@8V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
Applications
- Portable devices
- Load switch
- Battery switch
- Charger switch
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
