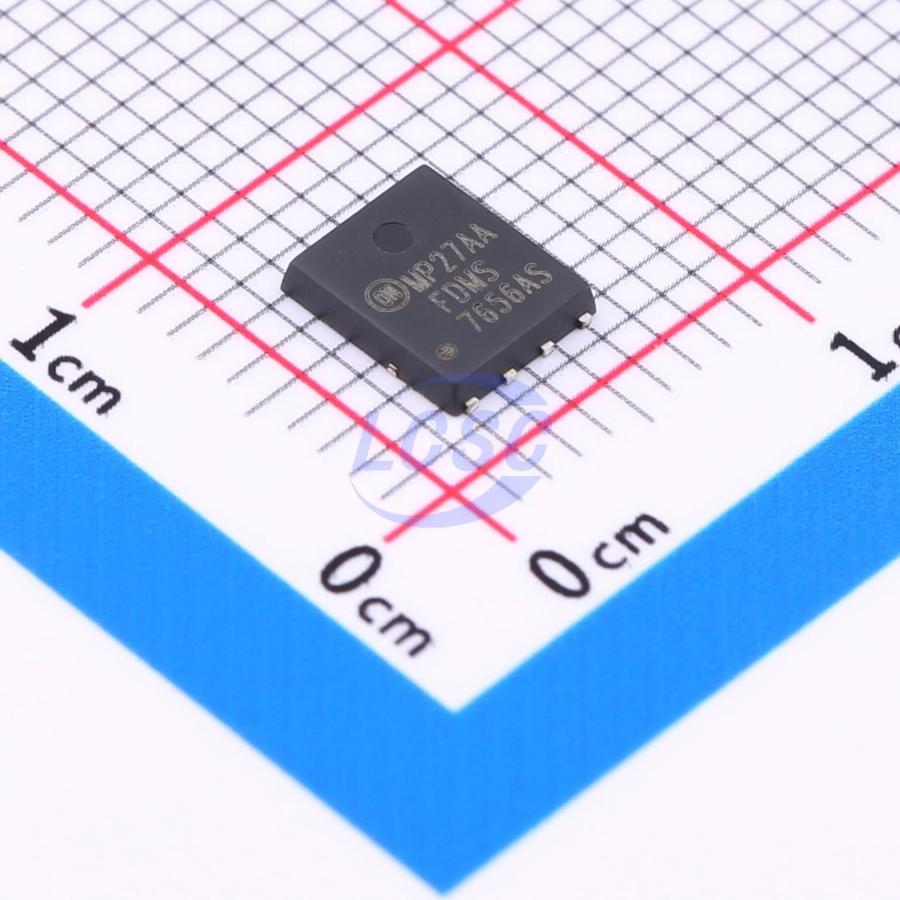

FDMS7656AS
30V 49A 96W Surface Mount Power-56-8
Power-56-8ROHS3 CompliantActive
MOSFET 30V 49A Power-56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS7656AS
- Store part #
- C891069
- Package / case
- Power-56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
925 in stock
#C891069
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.40 | ₹88.40 |
| 10+ | ₹71.42 | ₹714.20 |
| 30+ | ₹62.92 | ₹1,887.60 |
| 100+ | ₹54.44 | ₹5,444.00 |
| 500+ | ₹44.43 | ₹22,215.00 |
| 1,000+ | ₹41.81 | ₹41,810.00 |
1 × ₹88.40
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS7656AS
₹88.40 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 49A
- Ciss-Input Capacitance
- 8.705nF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 315pF
- RDS(on)
- 1.8mΩ@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.214 g
Overview
The FDMS7656AS has been designed to minimize losses in power conversion application. Advancements in both silicon and package technologies have been combined to offer the lowest rDS(on) while maintaining excellent switching performance. This device has the added benefit of an efficient monolithic Schottky body diode.
Applications
- Synchronous Rectifier for DC/DC Converters
- Notebook Vcore/ GPU low side switch
- Networking Point of Load low side switch
- Telecom secondary side rectification
Key features
- Max rDS(on)=1.8 mΩ at VGS=10 Vs ID=30 A
- Max rDS(on)=1.9 mΩ at VGS=7 V, ID=27 A
- Advanced Package and Silicon combination for low rDS(on) and high efficiency
- SyncFET Schottky Body Diode
- MSL1 robust package design
- 100% UIL tested
- RoHS Compliant
