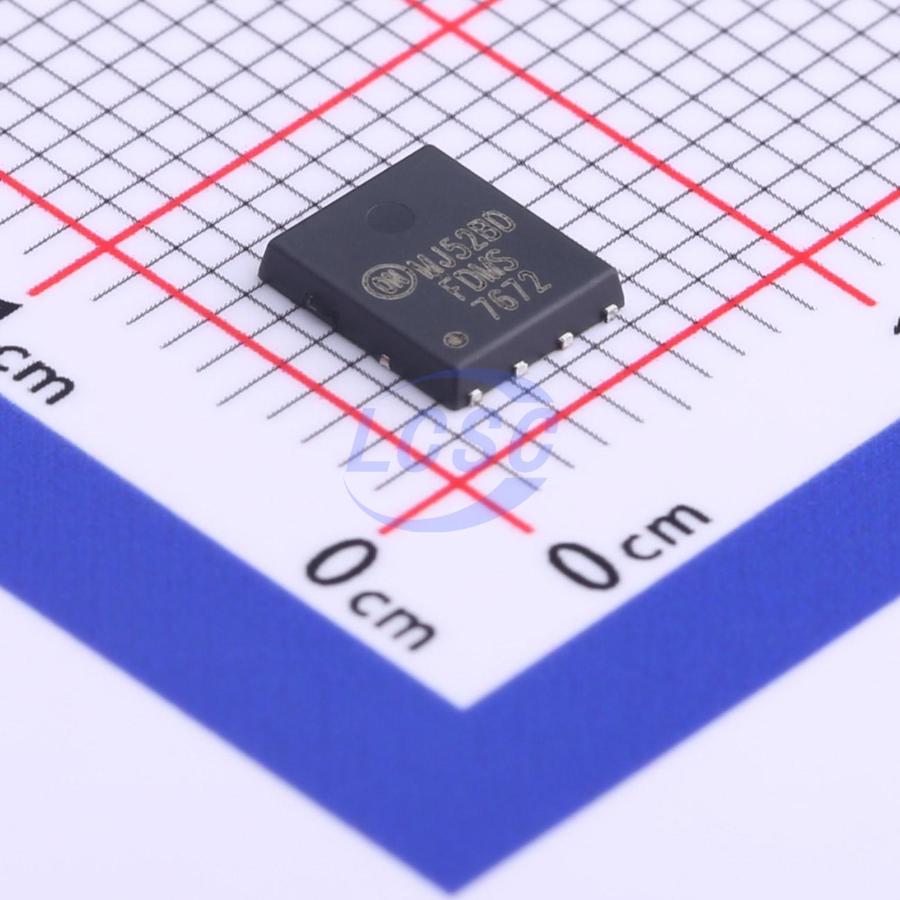

FDMS7672
N-Channel 30V 19A 28A 2.5W 48W Surface Mount PQFN-8(5x6)
PQFN-8(5x6)ROHS3 CompliantDiscontinued
MOSFET N-CH 30V 19A 28A PQFN-8(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS7672
- Store part #
- C463468
- Package / case
- PQFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C463468
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.45 | ₹123.45 |
| 10+ | ₹100.02 | ₹1,000.20 |
| 30+ | ₹88.31 | ₹2,649.30 |
| 100+ | ₹76.81 | ₹7,681.00 |
| 500+ | ₹61.19 | ₹30,595.00 |
| 1,000+ | ₹57.50 | ₹57,500.00 |
1 × ₹123.45
₹123.45
excl. GST
₹145.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS7672
₹123.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 735pF
- Ciss-Input Capacitance
- 2.96nF
- Pd - Power Dissipation
- 2.5W;48W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 19A;28A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.213 g
Overview
The FDMS7672AS is designed to minimize losses in power conversion applications. Combining advances in silicon and packaging technologies, it achieves the lowest RDS(ON) while maintaining excellent switching performance. The device also benefits from an efficient monolithic Schottky body diode.
Applications
- Synchronous rectifier for DC/DC converters
- Notebook Vcore/GPU low-side switch
- Networking point-of-load low-side switch
- Telecom secondary-side rectification
Key features
- Maximum r DS(on) = 4.0 mΩ at VGS = 10 V, ID = 18 A
- Maximum r DS(on) = 4.5 mΩ at VGS = 7 V, ID = 16 A
- Advanced packaging combined with silicon technology for low RDS(ON) and high efficiency
- Synchronous FET Schottky body diode
- MSL1 robust package design
- 100% UIL tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMS0312S#C891041onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | 200 | ₹99.89 · 200 in stock | View |
 | FDMS86300#C512898onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | 14 | ₹370.37 · 14 in stock | View |
 | IRFH8324TRPBF#C537903Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 35 | ₹55.86 · 35 in stock | View |
 | IRFH5015TRPBF#C513178Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 4,003 | ₹156.25 · 4,003 in stock | View |
 | FDMS86101DC#C605042onsemi · PQFN-8(5x6) | onsemi | PQFN-8(5x6) | 3,777 | ₹78.44 · 3,777 in stock | View |
