onsemiDatasheet (PDF)

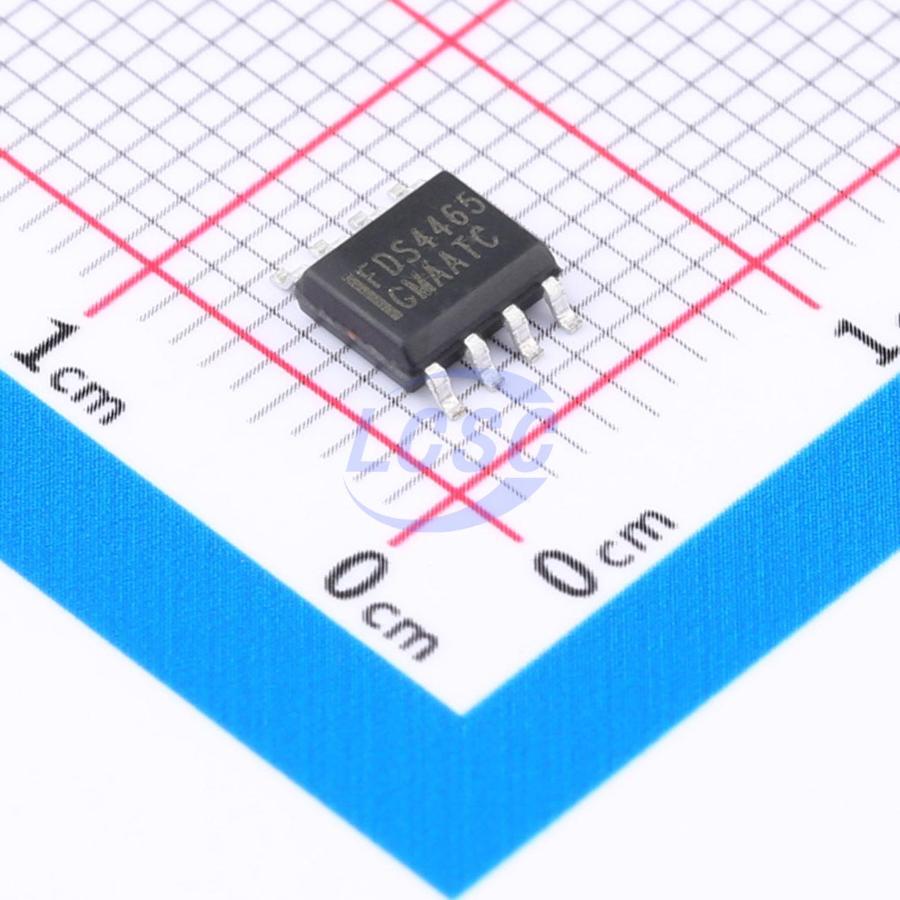

FDS4465
P-Channel 20V 13.5A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 20V 13.5A SO-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDS4465
- Store part #
- C92137
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
870 in stock
#C92137
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.89 | ₹138.89 |
| 10+ | ₹115.38 | ₹1,153.80 |
| 30+ | ₹102.55 | ₹3,076.50 |
| 100+ | ₹87.95 | ₹8,795.00 |
| 500+ | ₹81.42 | ₹40,710.00 |
| 1,000+ | ₹78.60 | ₹78,600.00 |
1 × ₹138.89
₹138.89
excl. GST
₹163.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDS4465
₹138.89 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.497nF
- Ciss-Input Capacitance
- 8.237nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 13.5A
- Reverse Transfer Capacitance (Crss)
- 750pF
- RDS(on)
- 8.5mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 120nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.436 g
Overview
This P−Channel 1.8 V specified MOSFET is a rugged gate version of ON Semiconductor’s advanced POWERTRENCH process. It has been optimized for power management applications with a wide range of gate drive voltage (1.8 V - 8 V).
Applications
- Power Management
- Load Switch
- Battery Protection
Key features
- –13.5 A, -20 V
- RDS(ON) = 8.5 mΩ @ VGS = -4.5 V
- RDS(ON) = 10.5 mΩ @ VGS = -2.5 V
- RDS(ON) = 14 mΩ @ VGS = -1.8 V
- Fast Switching Speed
- High Performance Trench Technology for Extremely Low RDS(ON)
- High Current and Power Handling Capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSO301SP H#C534541Infineon · DSO-8 | Infineon | DSO-8 | 100 | ₹338.89 · 100 in stock | View |
 | AGM30P10SR#C5349203AGMSEMI · SOP-8 | AGMSEMI | SOP-8 | 365 | ₹22.95 · 365 in stock | View |
 | FDS6681Z#C236906onsemi · SO-8 | onsemi | SO-8 | 954 | ₹194.48 · 954 in stock | View |
| FDS7779Z(UMW)#C19100580UMW · SOP-8 | UMW | SOP-8 | 3,000 | ₹32.27 · 3,000 in stock | View | |
 | FDS6673BZ#C467780onsemi · SO-8 | onsemi | SO-8 | 2,359 | ₹131.90 · 2,359 in stock | View |
