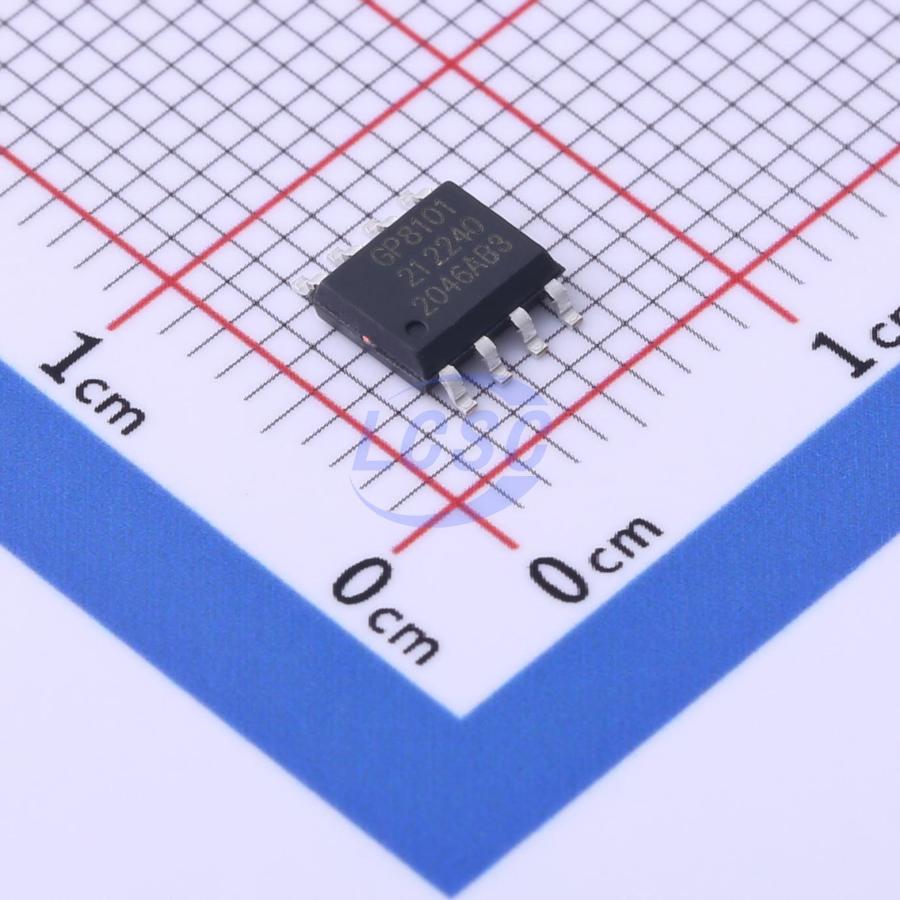

GP8101-F50-N-SW

1 10V~15V SOP-8 ADCs/DACs - Special Purpose RoHS

SOP-8ROHS CompliantActive

PAC(PWM to Analog Converter) 0%-100% PWM to 0-5V/0-10V

Manufacturer: Guestgood
Manufacturer part #: GP8101-F50-N-SW
Store part #: C2837700
Package / case: SOP-8
Category: ADCs/DACs - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,121 in stock

#C2837700

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹92.24	₹92.24
10+	₹75.05	₹750.50
30+	₹63.09	₹1,892.70
100+	₹53.30	₹5,330.00
500+	₹52.87	₹26,435.00
1,000+	₹50.91	₹50,910.00

Quantity (min 1)

1 × ₹92.24

₹92.24

excl. GST

₹108.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP8101-F50-N-SW

₹92.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Operating Temperature: -40℃~+85℃
ChipType: PWM-to-Analog Converter
Voltage - Supply: 10V~15V
Quiescent Current: 1000uA
Resolution (Bits): -;-

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.187 g

Overview

The GP8101 is a PWM-to-analog signal converter, functionally equivalent to a DAC with PWM input and analog voltage output. It linearly converts PWM signals with duty cycles from 0% to 100% into analog voltages of 0–5V or 0–10V, with output voltage accuracy better than 1%. The GP8101M variant supports high-frequency modulated PWM signals and can be paired with high-frequency modulated APC chips to achieve analog signal isolation.

Applications

Motor speed control
LED dimming
Inverter
Power supply
Industrial analog signal isolation

Key features

Linearly converts 0%–100% duty cycle PWM signals to 0–5V or 0–10V analog voltage output
Linearly converts high-frequency modulated PWM signals (0%–100% duty cycle) to 0–5V or 0–10V analog voltage output; compatible with high-frequency modulated APC ICs for capacitive or transformer isolation
Input signal duty cycle range: 0%–100%
Input PWM signal frequency range: 50Hz ~ 50kHz
Input PWM signal high level: 3.0V–5.5V
Output voltage error: < 1%
Output voltage linearity error: < 0.5%
Supply voltage: 10V–15V
Power consumption: < 2mA
Startup time: < 2ms
Operating temperature: -40°C ~ 85°C
