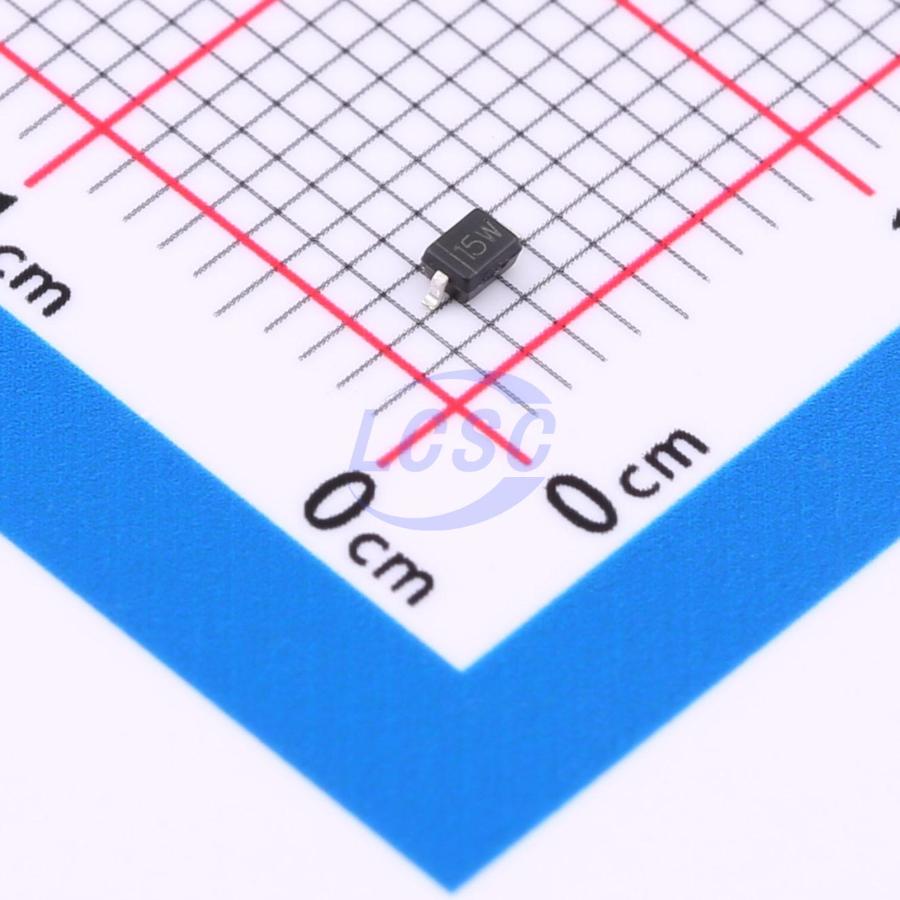

HCDSOD323-T15S
50VC Clamp 9A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 50VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCDSOD323-T15S
- Store part #
- C25503819
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C25503819
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.82 | ₹96.40 |
| 200+ | ₹3.81 | ₹762.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 3,000+ | ₹2.92 | ₹8,760.00 |
| 9,000+ | ₹2.63 | ₹23,670.00 |
| 21,000+ | ₹2.47 | ₹51,870.00 |
20 × ₹4.82
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HCDSOD323-T15S
₹96.40 for 20 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.017 g
Overview
The HCDSOD323-T15S protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide industry-leading protection for designs exposed to ESD. It offers designers the flexibility to protect a single unidirectional line in applications where arrays are not suitable. SOD-323 package.
Key features
- Unidirectional line ESD protection
- Reverse standoff voltage: 15.0V max
- Low leakage current: µA level
- Response time typically less than 1 µs
- Low clamping voltage: Vc = 50V @ Ipp = 9A
- ESD protection level: 30kV (air discharge) / 30kV (contact discharge) (IEC61000-4-2)
- RoHS compliant
