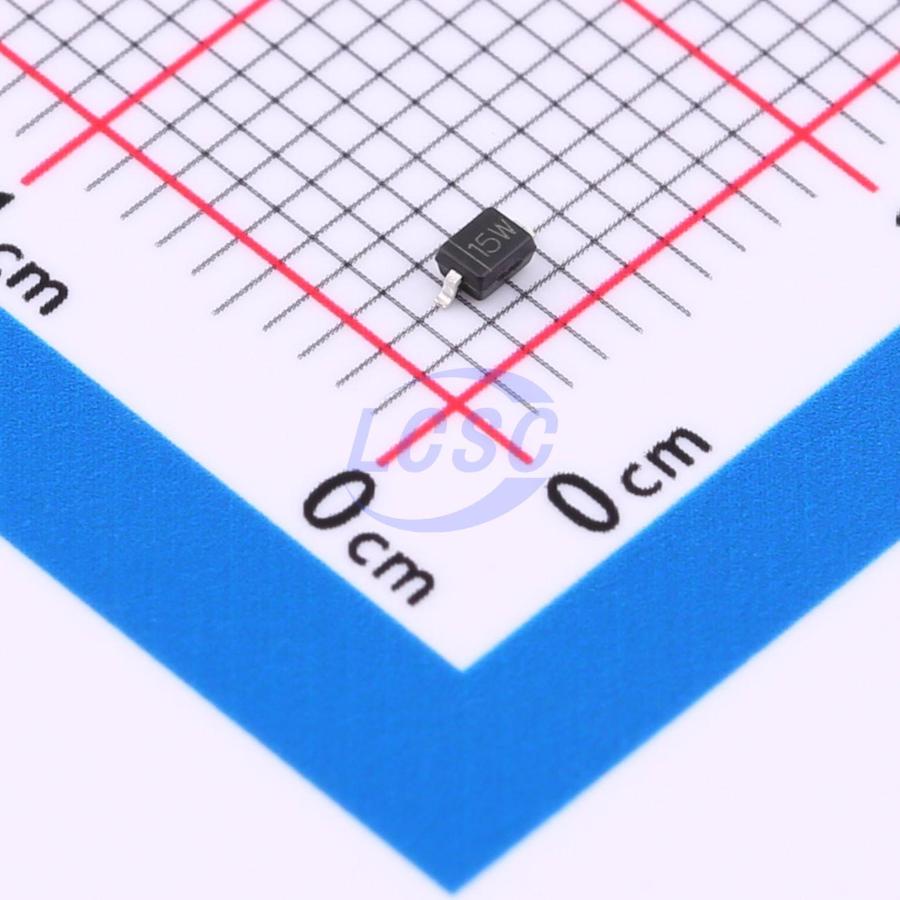

HPJSD15W_R1
50VC Clamp 9A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 50VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPJSD15W_R1
- Store part #
- C25503818
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C25503818
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.83 | ₹48.30 |
| 100+ | ₹3.82 | ₹382.00 |
| 300+ | ₹3.32 | ₹996.00 |
| 3,000+ | ₹2.94 | ₹8,820.00 |
| 6,000+ | ₹2.63 | ₹15,780.00 |
| 9,000+ | ₹2.49 | ₹22,410.00 |
10 × ₹4.83
₹48.30
excl. GST
₹56.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPJSD15W_R1
₹48.30 for 10 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
This device protects sensitive semiconductor components from damage or disruption caused by electrostatic discharge and other voltage-induced transient events. Its excellent clamping capability, low leakage, low capacitance, and fast response time provide superior protection for designs exposed to ESD. It offers designers the flexibility to protect a single unidirectional line in applications where arrays are not practical.
Key features
- Unidirectional ESD protection for single line
- Reverse stand-off voltage: 15.0V maximum
- Low leakage current: µA level
- Response time typically less than 1 µs
- Low clamping voltage: VC = 50V at IPP = 9A
- ESD protection: 30kV (air discharge) / 30kV (contact discharge) (per IEC61000-4-2)
- RoHS compliant
