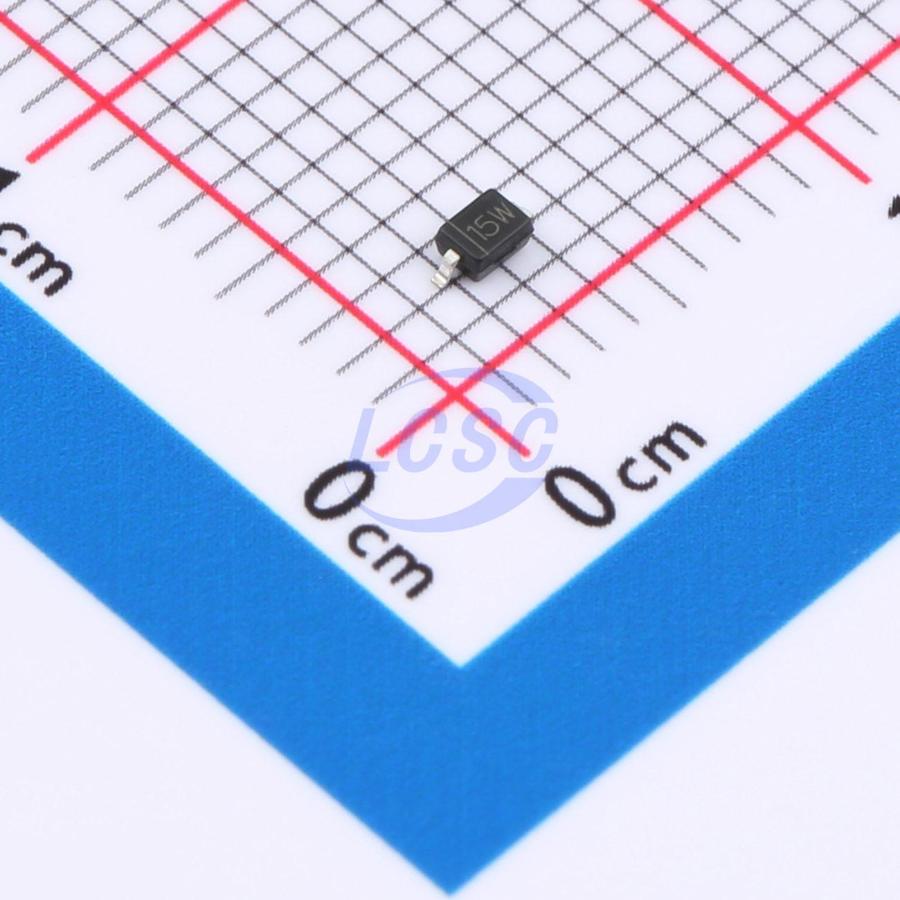

HSEN1511D3
50VC Clamp 9A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 50VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSEN1511D3
- Store part #
- C25503820
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C25503820
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.93 | ₹78.60 |
| 200+ | ₹3.12 | ₹624.00 |
| 600+ | ₹2.67 | ₹1,602.00 |
| 3,000+ | ₹2.39 | ₹7,170.00 |
| 9,000+ | ₹2.16 | ₹19,440.00 |
| 21,000+ | ₹2.04 | ₹42,840.00 |
20 × ₹3.93
₹78.60
excl. GST
₹92.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSEN1511D3
₹78.60 for 20 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.017 g
Overview
The HSEN1511D3 protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. This device offers designers the flexibility to protect a single unidirectional line in applications where arrays are not suitable. Available in SOD-323 package.
Key features
- Unidirectional ESD protection for single line
- Reverse standoff voltage: 15.0V maximum
- Low leakage current: μA level
- Response time typically less than 1 microsecond
- Low clamping voltage: Vc = 50V at IPP = 9A
- ESD protection: 30kV (air discharge) / 30kV (contact discharge) (per IEC61000-4-2)
- RoHS compliant
