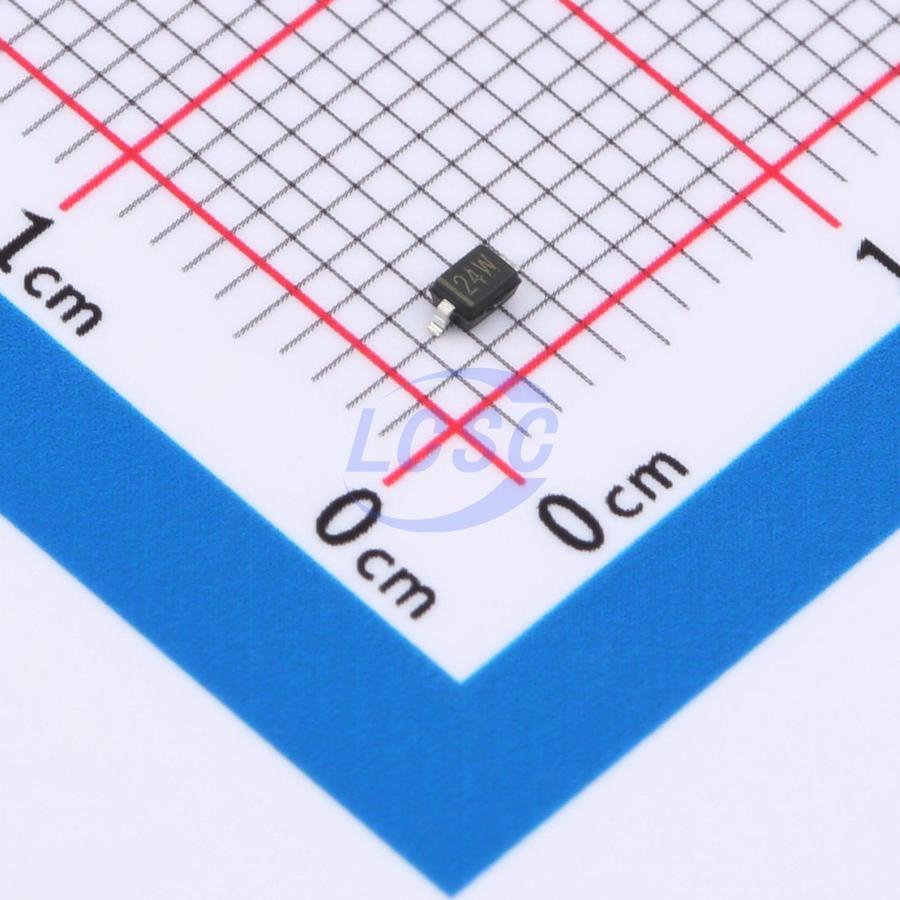

HCDSOD323-T24S
60VC Clamp 6A Ipp ESD DIODE SOD-323
ESD DIODE 24VWM 60VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCDSOD323-T24S
- Store part #
- C25503233
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C25503233
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.05 | ₹101.00 |
| 200+ | ₹3.93 | ₹786.00 |
| 600+ | ₹3.32 | ₹1,992.00 |
| 3,000+ | ₹2.95 | ₹8,850.00 |
| 9,000+ | ₹2.62 | ₹23,580.00 |
| 21,000+ | ₹2.45 | ₹51,450.00 |
20 × ₹5.05
₹101.00
excl. GST
₹119.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HCDSOD323-T24S
₹101.00 for 20 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
The HCDSOD323-T24S protects sensitive semiconductor components from damage or disruption caused by ESD and other transient voltage events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for ESD-sensitive designs. The device offers designers flexibility to protect a single unidirectional line in applications where an array is not suitable. Available in SOD-323 package.
Key features
- Unidirectional ESD protection for single-line applications
- Reverse standoff voltage: 24.0V max
- Low leakage current: microampere level
- Typical response time < 1 µs
- Low clamping voltage: Vc = 60V @ IPP = 6A
- ESD protection level: 30kV (air discharge) / 30kV (contact discharge) (IEC61000-4-2)
- RoHS compliant
