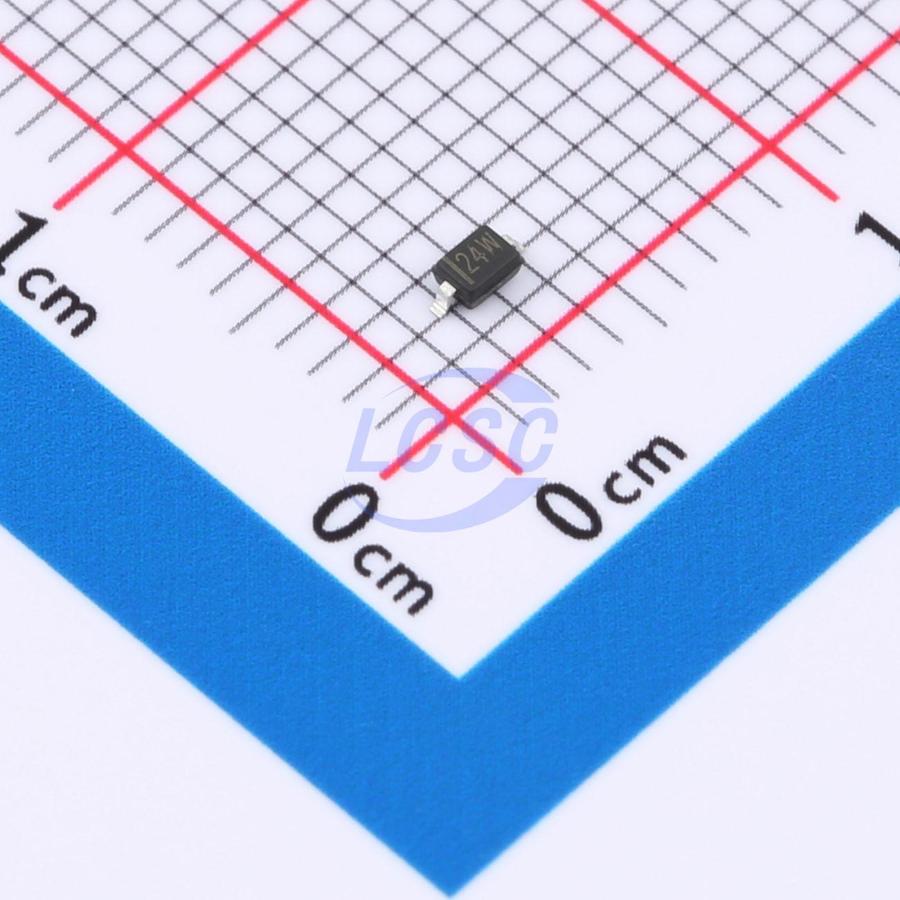

HSD24-7
60VC Clamp 6A Ipp ESD DIODE SOD-323
ESD DIODE 24VWM 60VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSD24-7
- Store part #
- C25503232
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C25503232
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.52 | ₹65.20 |
| 100+ | ₹5.25 | ₹525.00 |
| 300+ | ₹4.62 | ₹1,386.00 |
| 3,000+ | ₹4.14 | ₹12,420.00 |
| 6,000+ | ₹3.77 | ₹22,620.00 |
| 9,000+ | ₹3.57 | ₹32,130.00 |
10 × ₹6.52
₹65.20
excl. GST
₹76.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSD24-7
₹65.20 for 10 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
The HSD24-7 is designed to protect sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single unidirectional line in applications where array protection is not suitable.
Key features
- Unidirectional ESD protection for single line
- Reverse standoff voltage: 24.0V max
- Low leakage current: microampere level
- Typical response time less than 1 microsecond
- Low clamping voltage: Vc = 60V @ Ipp = 6A
- ESD protection: 30kV (air discharge) / 30kV (contact discharge) per IEC61000-4-2
- RoHS compliant
