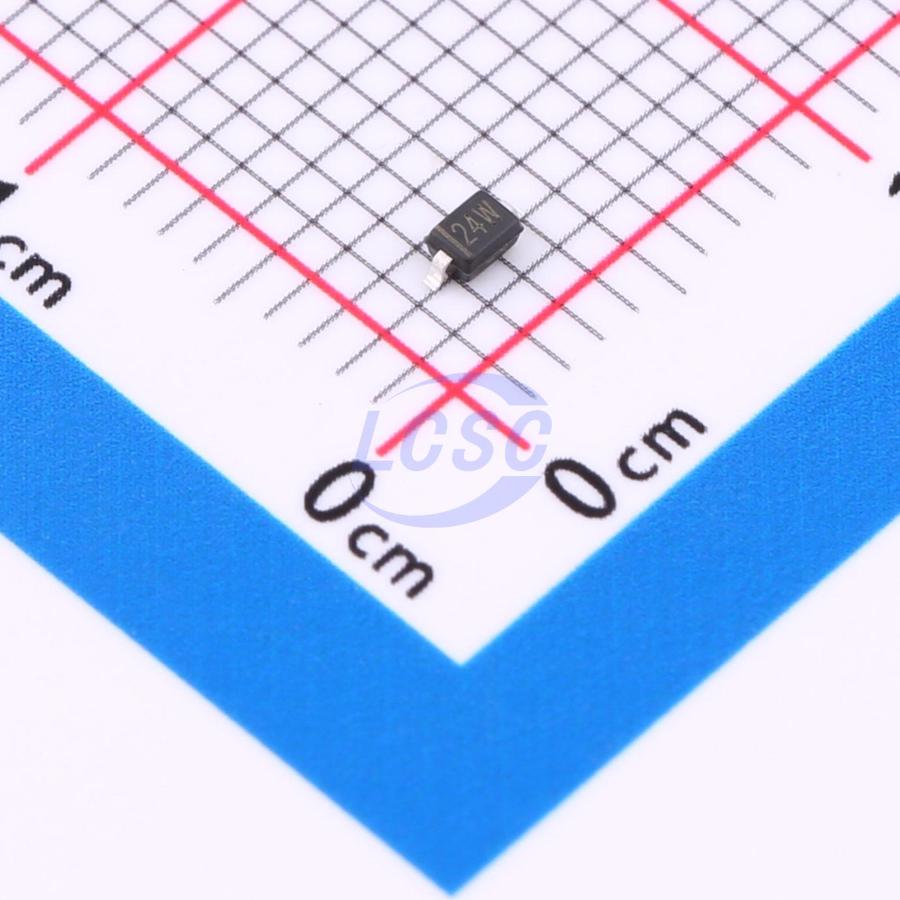

HPESDNC3D24VU
60VC Clamp 6A Ipp ESD DIODE SOD-323
ESD DIODE 24VWM 60VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPESDNC3D24VU
- Store part #
- C25503229
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C25503229
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.54 | ₹95.40 |
| 100+ | ₹7.69 | ₹769.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹6.06 | ₹18,180.00 |
| 6,000+ | ₹5.50 | ₹33,000.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹9.54
₹95.40
excl. GST
₹112.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPESDNC3D24VU
₹95.40 for 10 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.023 g
Overview
This device protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for designs exposed to ESD. It provides designers with the flexibility to protect a single unidirectional line in applications where arrays are not suitable. Package type: SOD-323.
Key features
- Unidirectional ESD protection for single-line applications
- Reverse stand-off voltage: 24.0V max
- Low leakage current: µA level
- Response time typically less than 1 µs
- Low clamping voltage: VC = 60V @ IPP = 6A
- ESD protection rating: 30kV (air discharge) / 30kV (contact discharge) (IEC61000-4-2 compliant)
- RoHS compliant
