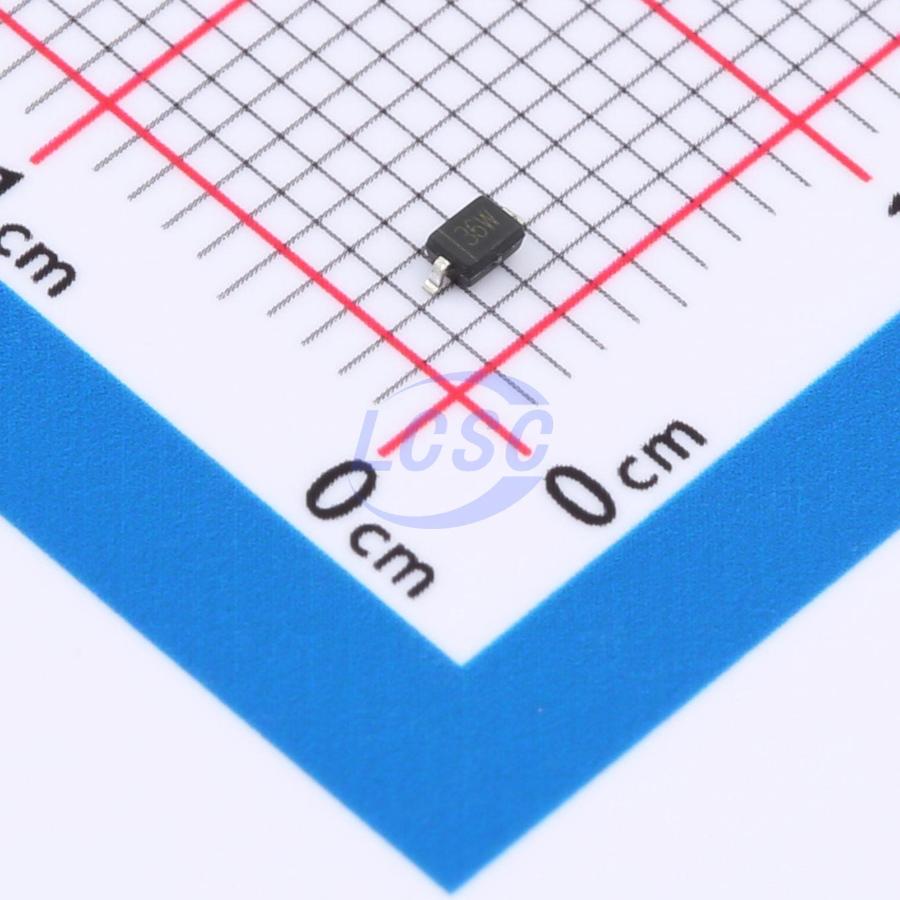

HCDSOD323-T36S
70VC Clamp 4A Ipp ESD DIODE SOD-323
ESD DIODE 36VWM 70VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCDSOD323-T36S
- Store part #
- C25503321
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
340 in stock
#C25503321
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.31 | ₹106.20 |
| 200+ | ₹4.27 | ₹854.00 |
| 600+ | ₹3.76 | ₹2,256.00 |
| 3,000+ | ₹3.37 | ₹10,110.00 |
| 9,000+ | ₹3.06 | ₹27,540.00 |
| 21,000+ | ₹2.91 | ₹61,110.00 |
20 × ₹5.31
₹106.20
excl. GST
₹125.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HCDSOD323-T36S
₹106.20 for 20 + GST
Specifications
- Clamping Voltage
- 70V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 38V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.018 g
Overview
The HCDSOD323-T36S device protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide industry-leading protection for designs exposed to ESD environments. The device offers designers flexibility to protect a single unidirectional line in applications where arrays are not suitable. SOD-323 package.
Key features
- Unidirectional ESD protection for one line
- Reverse stand-off voltage: 36.0V max
- Low leakage current: µA level
- Typical response time <1 µs
- Low clamping voltage: Vc = 70V @ IPP = 4A
- ESD protection: 30kV (air discharge) / 30kV (contact discharge) (IEC61000-4-2)
- RoHS compliant
