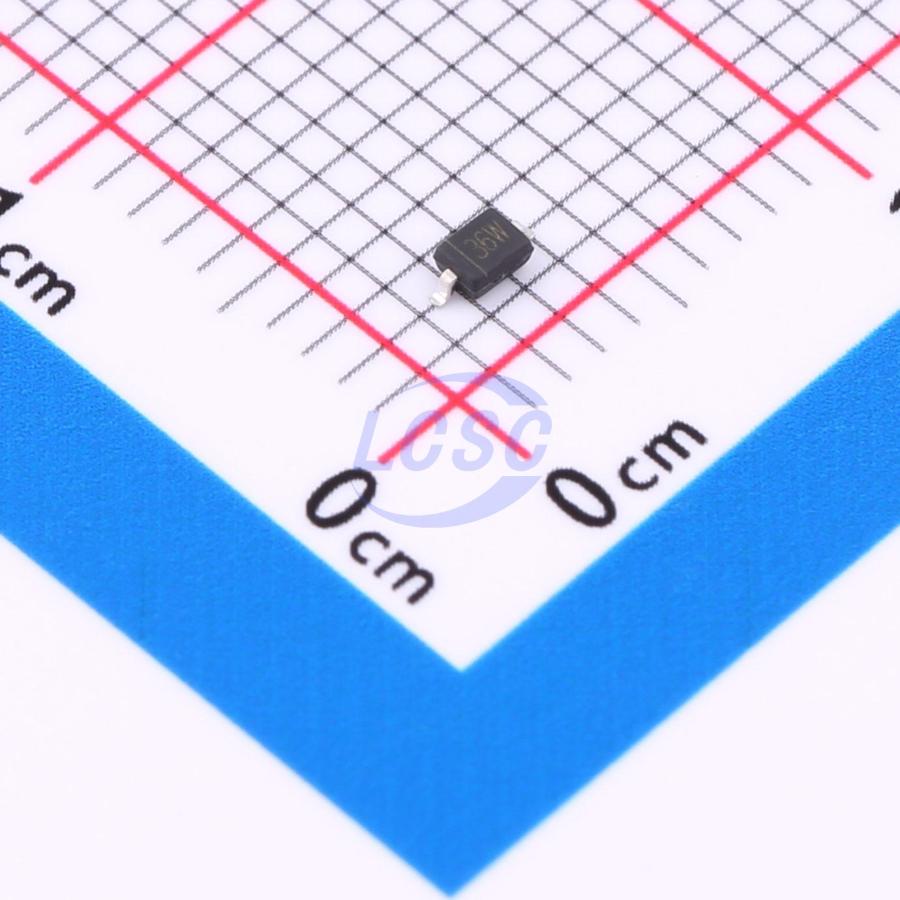

HSDD32A36L01
70VC Clamp 4A Ipp ESD DIODE SOD-323
ESD DIODE 36VWM 70VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSDD32A36L01
- Store part #
- C25503325
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C25503325
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.52 | ₹90.40 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹2.96 | ₹1,776.00 |
| 3,000+ | ₹2.63 | ₹7,890.00 |
| 9,000+ | ₹2.34 | ₹21,060.00 |
| 21,000+ | ₹2.20 | ₹46,200.00 |
20 × ₹4.52
₹90.40
excl. GST
₹106.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSDD32A36L01
₹90.40 for 20 + GST
Specifications
- Clamping Voltage
- 70V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 38V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.018 g
Overview
The HSDD32A36L01 is designed to protect sensitive semiconductor components from damage or failure caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide robust protection for designs exposed to ESD environments. The device offers designers flexibility to protect a single unidirectional line in applications where an array is not suitable. Available in SOD-323 package.
Key features
- Unidirectional ESD protection for single-line applications
- Reverse stand-off voltage: 36.0V max
- Low leakage current: μA level
- Typical response time < 1 us
- Low clamping voltage: Vc = 70V @ IPP = 4A
- ESD protection rating: 30kV (air discharge) / 30kV (contact discharge) (per IEC61000-4-2)
- RoHS compliant
