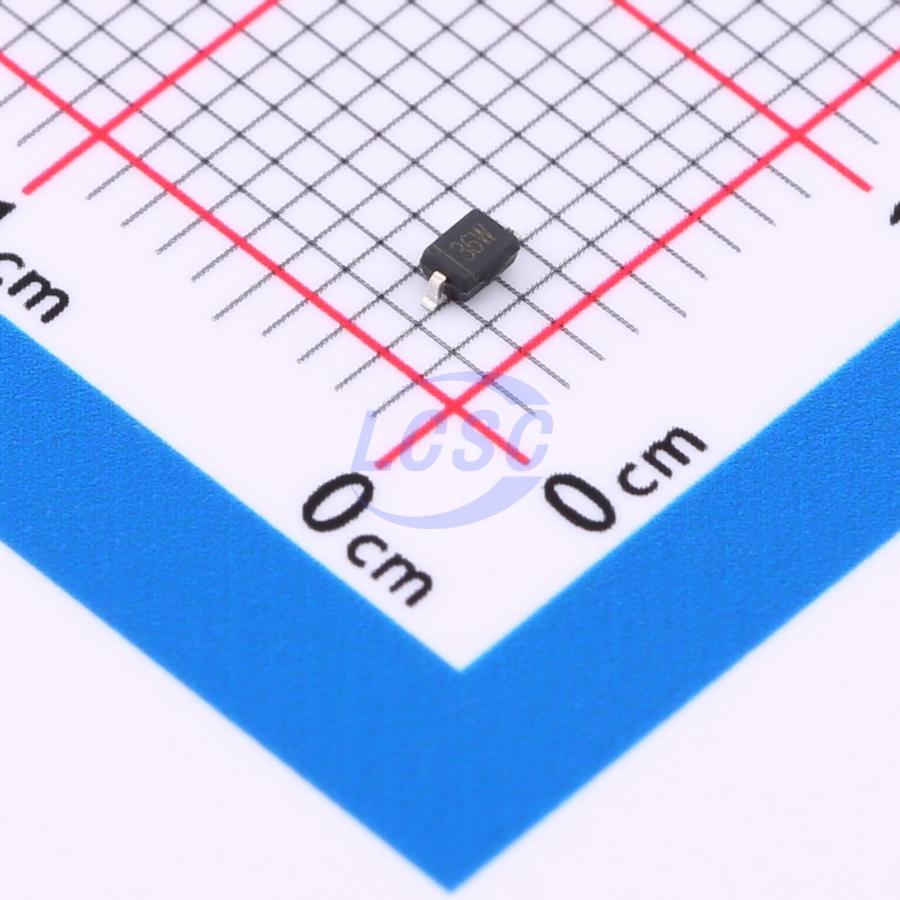

HSD36-01FTG
70VC Clamp 4A Ipp ESD DIODE SOD-323
ESD DIODE 36VWM 70VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSD36-01FTG
- Store part #
- C25503322
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C25503322
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.99 | ₹99.80 |
| 200+ | ₹3.94 | ₹788.00 |
| 600+ | ₹3.43 | ₹2,058.00 |
| 3,000+ | ₹3.03 | ₹9,090.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
| 21,000+ | ₹2.55 | ₹53,550.00 |
20 × ₹4.99
₹99.80
excl. GST
₹117.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSD36-01FTG
₹99.80 for 20 + GST
Specifications
- Clamping Voltage
- 70V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 38V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.018 g
Overview
This device protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single unidirectional line in applications where arrays are not suitable. SOD-323 package.
Key features
- Unidirectional ESD protection, single line
- Reverse standoff voltage: 36.0V max
- Low leakage current: µA level
- Response time typically less than 1µs
- Low clamping voltage: V_C = 70V at I_PP = 4A
- ESD protection: 30kV (air discharge) / 30kV (contact discharge) (IEC61000-4-2)
- RoHS compliant
