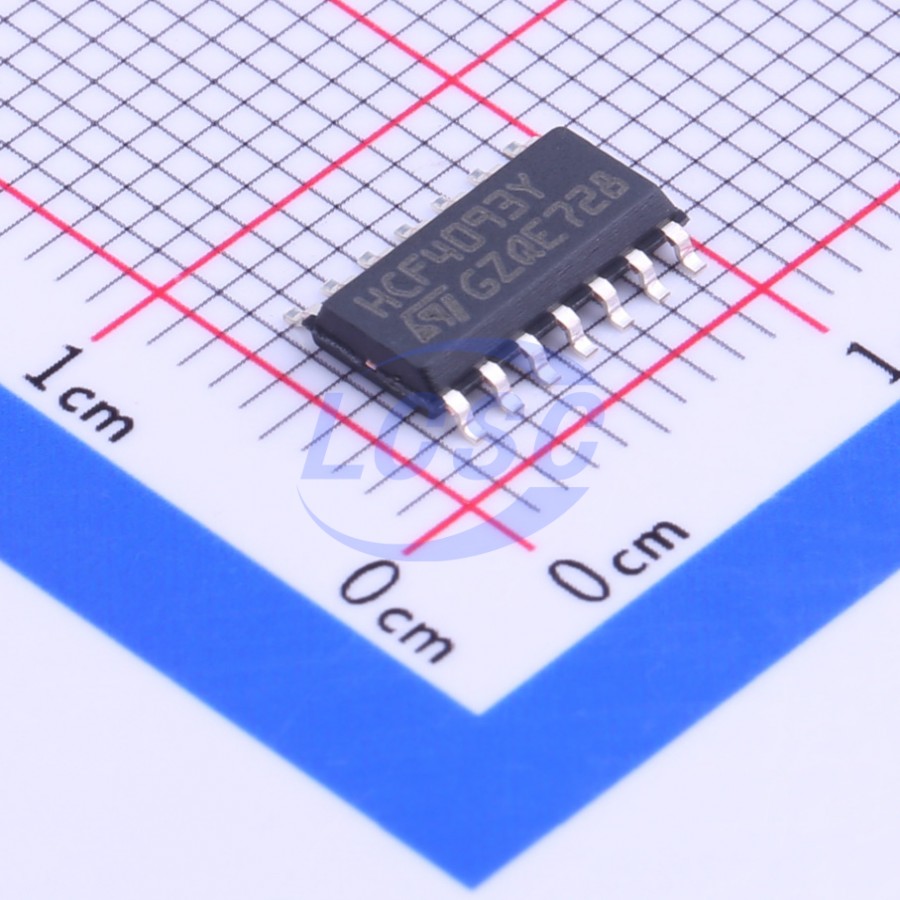

HCF4093YM013TR
Schmitt trigger 3V~20V 130ns@15V,50pF 20uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input NAND Schmitt trigger
- Manufacturer
- ST
- Manufacturer part #
- HCF4093YM013TR
- Store part #
- C157369
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,470 in stock
#C157369
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.31 | ₹69.31 |
| 10+ | ₹56.93 | ₹569.30 |
| 30+ | ₹51.72 | ₹1,551.60 |
| 100+ | ₹44.98 | ₹4,498.00 |
| 500+ | ₹41.94 | ₹20,970.00 |
| 1,000+ | ₹40.21 | ₹40,210.00 |
1 × ₹69.31
₹69.31
excl. GST
₹81.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HCF4093YM013TR
₹69.31 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000 Series
- Voltage - Supply
- 3V~20V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 130ns@15V,50pF
- Input Logic Level - High
- 3.6V~10.8V
- Input Logic Level - Low
- 900mV~4V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.263 g
Overview
The HCF4093 is a monolithic integrated circuit fabricated in metal oxide semiconductor technology available in the SO14 package. The HCF4093 consists of four Schmitt trigger circuits. Each circuit function has a 2-input NAND gate with Schmitt trigger action on both inputs. The gate switches at different points for positive and negative going signals. The difference between the positive voltage (Vₚ) and the negative voltage (Vₙ) is defined as hysteresis voltage (Vₕ).
Applications
- Automotive
- Industrial
- Computer
- Consumer
Key features
- Schmitt trigger action on each input with no external components
- Hysteresis voltage typically 0.9 V at VDD = 5 V and 2.3 V at VDD = 10 V
- Noise immunity greater than 50% of VDD (typ.)
- No limit on input rise and fall times
- Quiescent current specified up to 20 V
- Standardized symmetrical output characteristics
- 5 V, 10 V, and 15 V parametric ratings
- Input leakage current II = 100 nA (max.) at VDD = 18 V and TA = 25 ℃
- 100% tested for quiescent current
- ESD performance:
- HBM: 2 kV
- MM: 200 V
- CDM: 1 kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4093BM/TR#C194332HGSEMI · SOIC-14 | HGSEMI | SOIC-14 | 3,380 | ₹17.32 · 3,380 in stock | View |
 | CD4093BDTR(XBLW)#C41361405XBLW · SOP-14 | XBLW | SOP-14 | 5,075 | ₹21.43 · 5,075 in stock | View |
 | HX4093-S#C42431690ZHHXDZ · SOP-14 | ZHHXDZ | SOP-14 | 1,430 | ₹10.72 · 1,430 in stock | View |
 | CD4093BM#C160714TI · SOIC-14 | TI | SOIC-14 | 1,215 | ₹58.60 · 1,215 in stock | View |
 | CD4093BM96#C34809TI · SOIC-14 | TI | SOIC-14 | 10,025 | ₹49.72 · 10,025 in stock | View |
