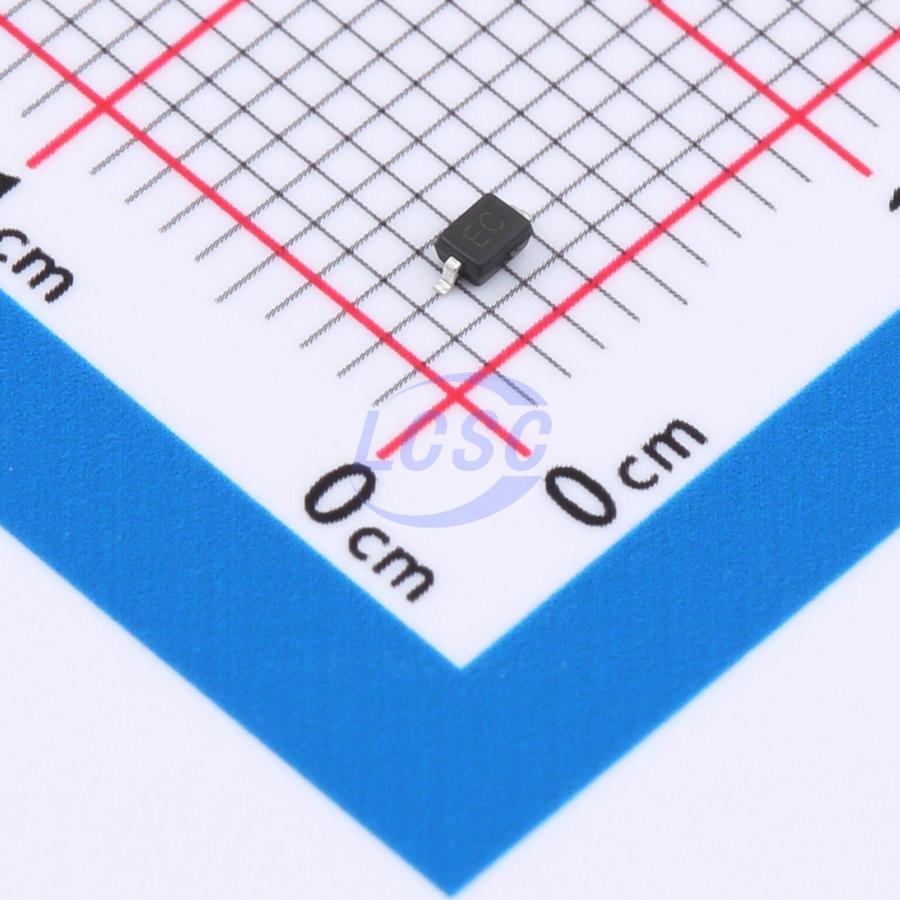

HCPDV15V0-HF
31.8VC Clamp 10A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 31.8VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCPDV15V0-HF
- Store part #
- C22439871
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C22439871
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.11 | ₹100.55 |
| 50+ | ₹16.19 | ₹809.50 |
| 150+ | ₹14.25 | ₹2,137.50 |
| 500+ | ₹12.78 | ₹6,390.00 |
| 3,000+ | ₹11.60 | ₹34,800.00 |
| 6,000+ | ₹11.01 | ₹66,060.00 |
5 × ₹20.11
₹100.55
excl. GST
₹118.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HCPDV15V0-HF
₹100.55 for 5 + GST
Specifications
- Clamping Voltage
- 31.8V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 10A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.7V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
The HCPDV15V0-HF protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not practical.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 15V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
