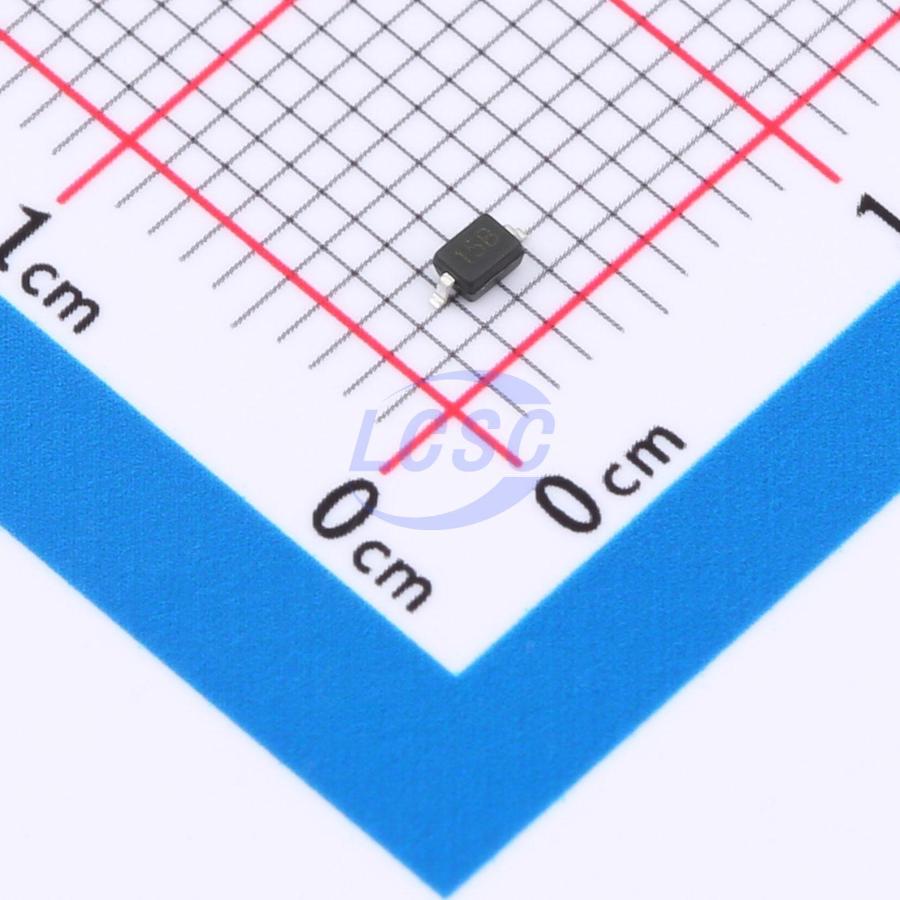

HPESD1LIN
38VC Clamp 10A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 38VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPESD1LIN
- Store part #
- C22439691
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C22439691
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.08 | ₹508.00 |
| 300+ | ₹4.41 | ₹1,323.00 |
| 3,000+ | ₹3.90 | ₹11,700.00 |
| 6,000+ | ₹3.49 | ₹20,940.00 |
| 9,000+ | ₹3.29 | ₹29,610.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPESD1LIN
₹64.20 for 10 + GST
Specifications
- Clamping Voltage
- 38V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 10A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.7V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
HPESD1LIN protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide robust protection for designs exposed to ESD environments. The device offers designers flexibility to protect a single bidirectional line in applications where array protection is not suitable. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): ±30kV (contact discharge), ±30kV (air discharge); compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 15V
- Protection for single Vcc or data line
- Low clamping voltage
- Low leakage current
