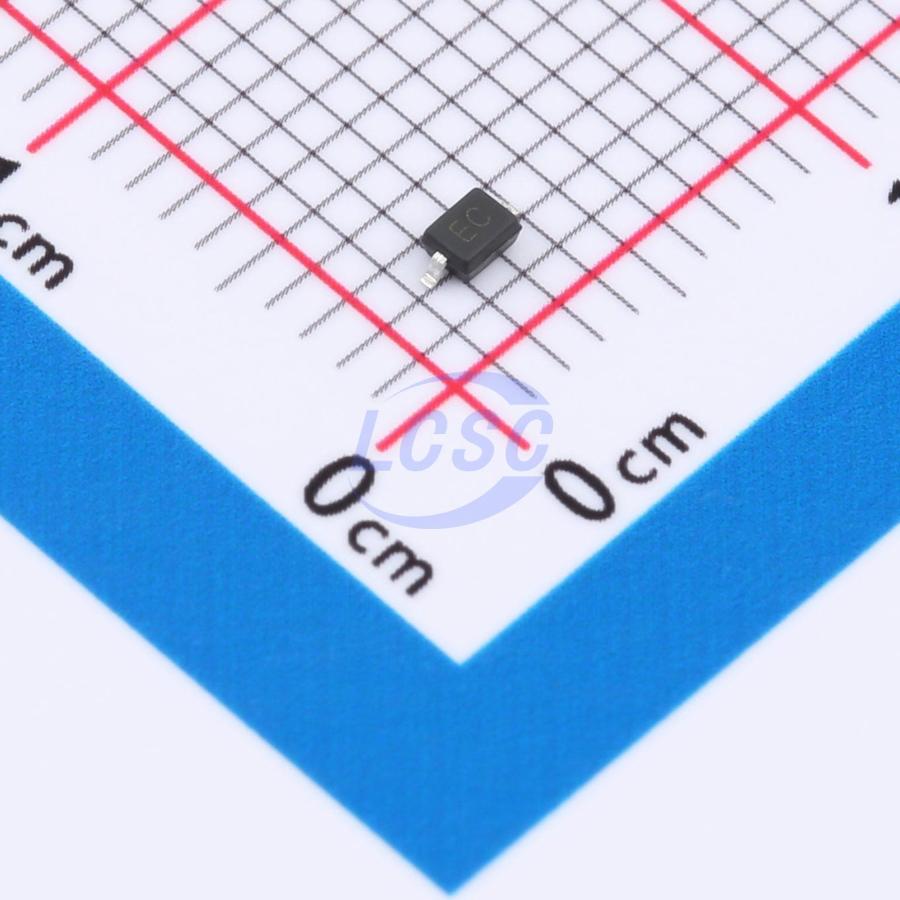

HSEH1501D3
31.8VC Clamp 10A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 31.8VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSEH1501D3
- Store part #
- C22439756
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C22439756
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.43 | ₹64.30 |
| 100+ | ₹5.08 | ₹508.00 |
| 300+ | ₹4.41 | ₹1,323.00 |
| 3,000+ | ₹3.90 | ₹11,700.00 |
| 6,000+ | ₹3.51 | ₹21,060.00 |
| 9,000+ | ₹3.29 | ₹29,610.00 |
10 × ₹6.43
₹64.30
excl. GST
₹75.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSEH1501D3
₹64.30 for 10 + GST
Specifications
- Clamping Voltage
- 31.8V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 10A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16.7V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.015 g
Overview
The HSEH1501D3 protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): ±30kV (contact discharge), ±30kV (air discharge); compliant with IEC 61000-4-4 (EFT): 40A (5/50ns)
- Peak power dissipation: 350W (8/20µs)
- Working voltage: 15V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
